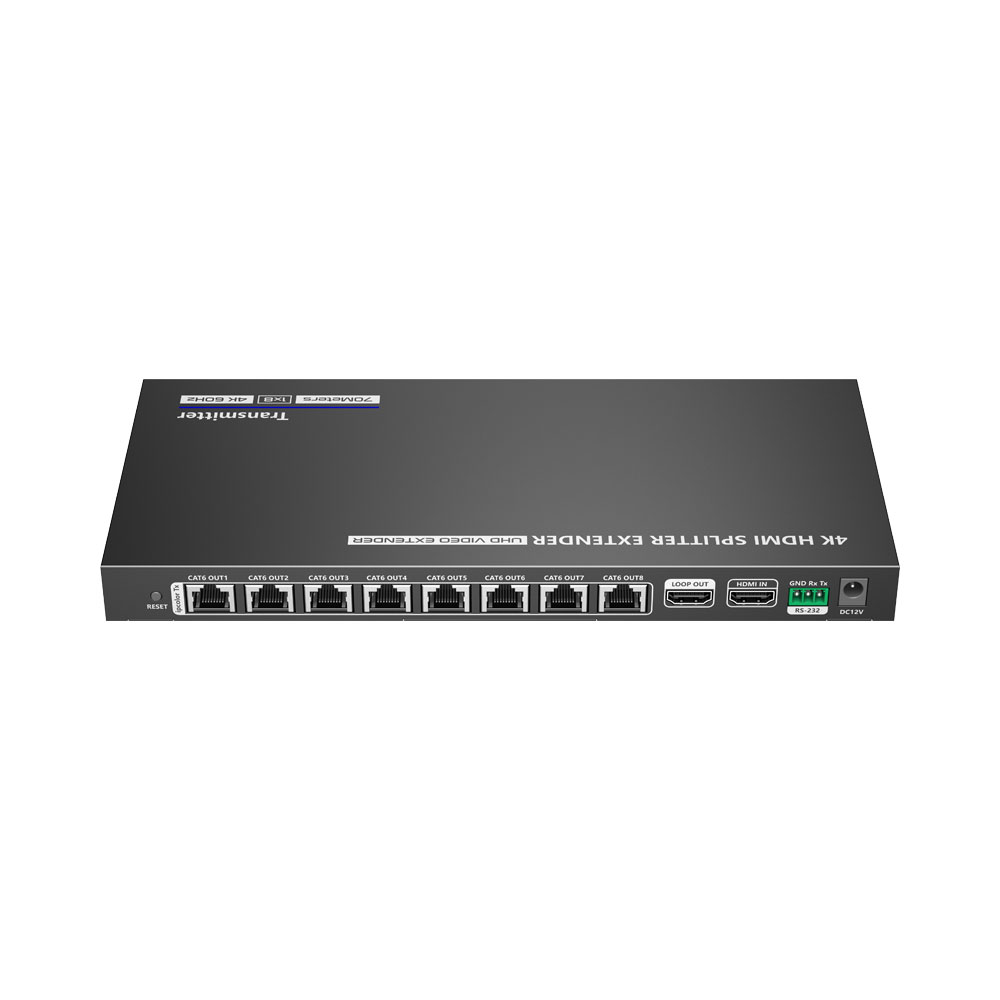

LENKENG LKV828P-I | 1X8 4K @60HZ SPLITTER WITH EXTENDER POC

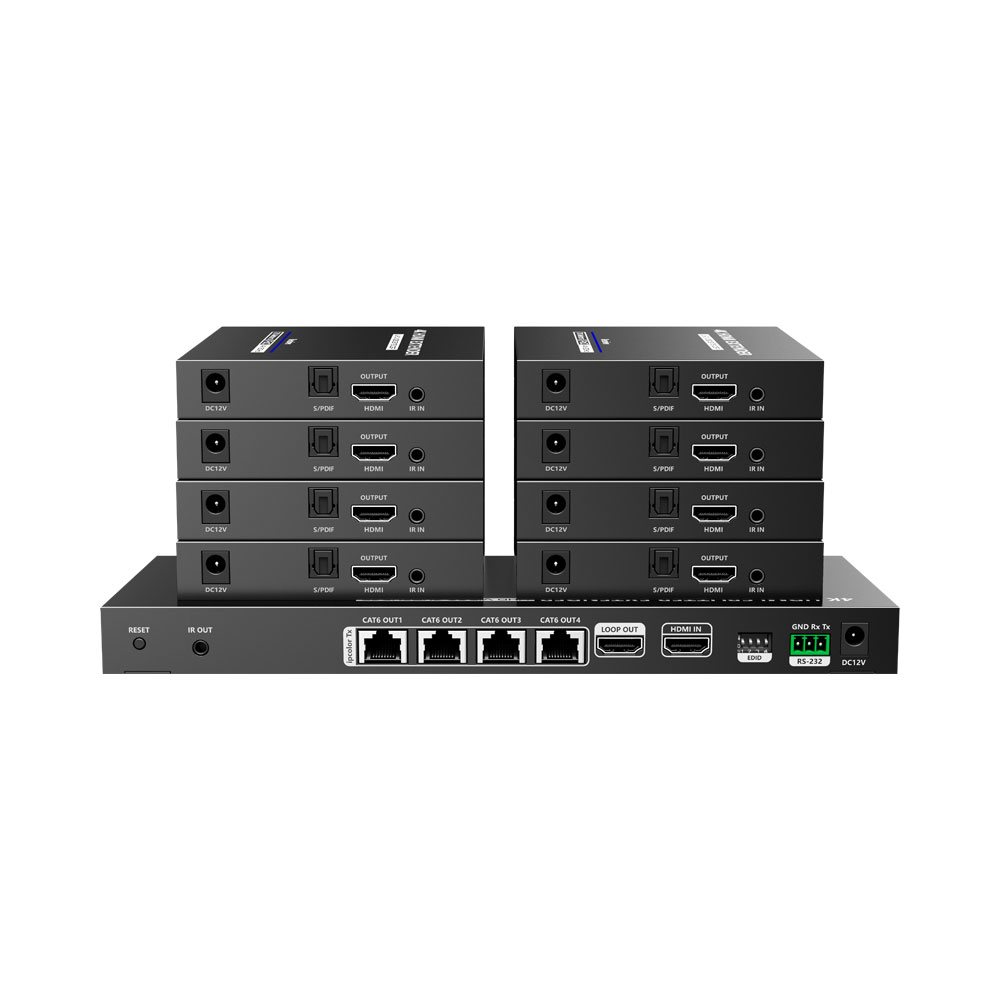

LENKENG LKV828P-I | 1X8 4K @60HZ SPLITTER WITH EXTENDER POC - Image 2

LENKENG LKV828P-I | 1X8 4K @60HZ SPLITTER WITH EXTENDER POC

FEATURES:

Resolutions up to 4K @60Hz HDR (3840×2160)
Extend up to 70m
Zero Latency
Power over Cable (PoC)
IR Passback
EDID Control
RS232 Control
Lightning, Surge and ESD Protection

SKU: CNV-LKV828P-I Category: Lenkeng Tags: 1×8, 4K, Black, CAT6, CAT6A, CAT7, EDID, ESD Protection, Extender, HDMI, ipcolor IMAGE, Lenkeng, Lightning Protection, LKV828P-I, Metal, RS232, Splitter, Surge Protection, Zero Latency Brand: Lenkeng

Description
Additional information

Lenkeng LKV828P-I | 1×8 4K @60Hz Splitter with Extender PoC

A 1-input to 8-outputs extender splitter kit, which integrates the functions of distribution and extension. It distributes 1× HDMI input signal to 8× identical signal outputs, extends these signals up to 70 meters and supports 4K @60Hz resolution. It also supports IR passback, RS232 control and other functions.

FEATURES:

Resolutions up to 4K @60Hz HDR (3840×2160)
Extend up to 70m
Zero Latency
Power over Cable (PoC)
IR Passback
EDID Control
RS232 Control
Lightning, Surge and ESD Protection

SPECIFICATIONS:

Transmission Protocol	ipcolor IMAGE
Distribution Mode	1-In × 8-Out
Transmission Distance	CAT6/6A/7 ≤70m
HDMI Signal	HDMI 2.0, HDCP 2.2
HDMI Resolution	480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz
Audio Formats	LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1
IR	Supports IR Passback Function (20KHz~60KHz)
RS232	3-Pin: TxD-RxD-GND, follows RS232 Levels
Working Temperature	-20~60°C
Storage Temperature	-30~70°C
Humidity (No Condensation)	0~90% RH
Protection	ESD Protection
	1a Contact Discharge Level 2
	1b Air Discharge Level 3
	Implementation of the Standard: IEC61000-4-2
	Lightning Protection
	Surge Protection
Power Supply	TX: DC12V 5A
Power Consumption	TX and RX <50W
Material	Iron
Colour	Black
Weight	TX: 731g
Weight	RX: 243g
Dimension (L × W × H)	TX: 264 × 120 × 23mm
Dimension (L × W × H)	RX: 105.5 × 102.5 × 20mm

Additional information

Weight	4.1 kg
Dimensions	46 × 26 × 16 cm
