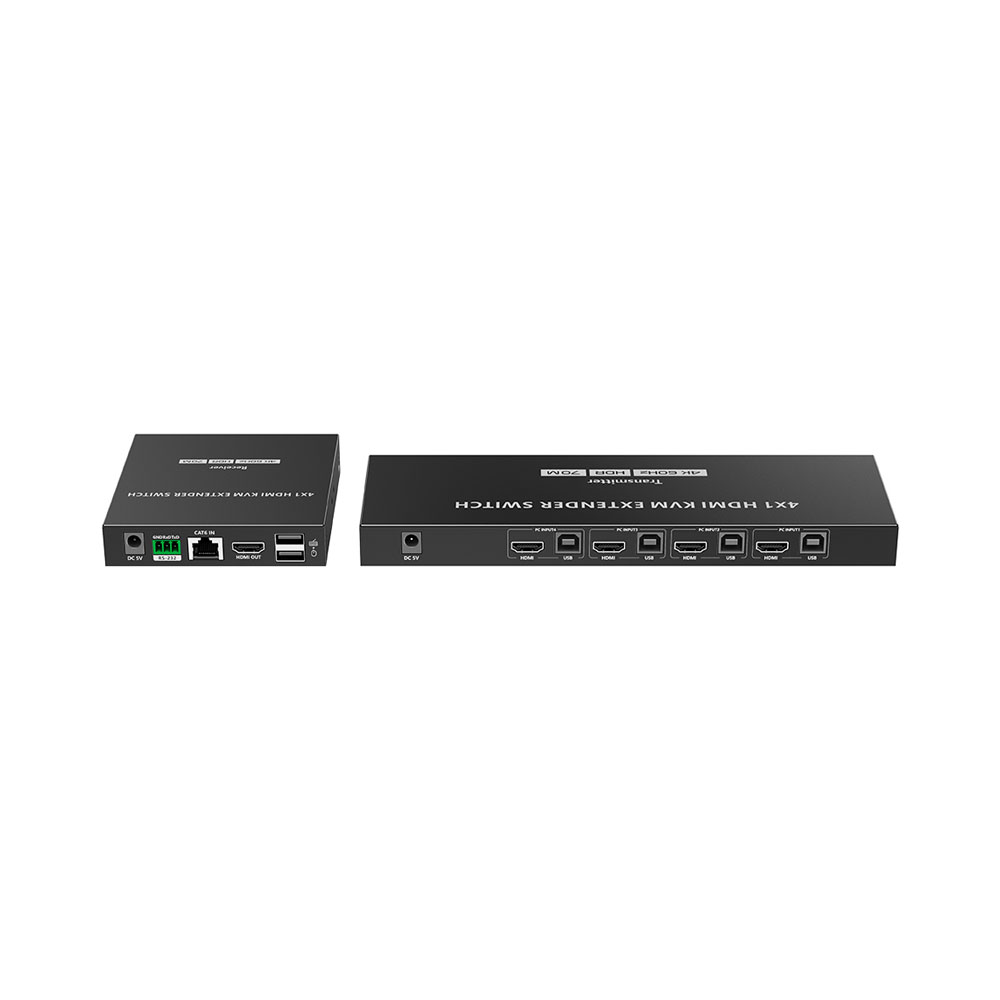

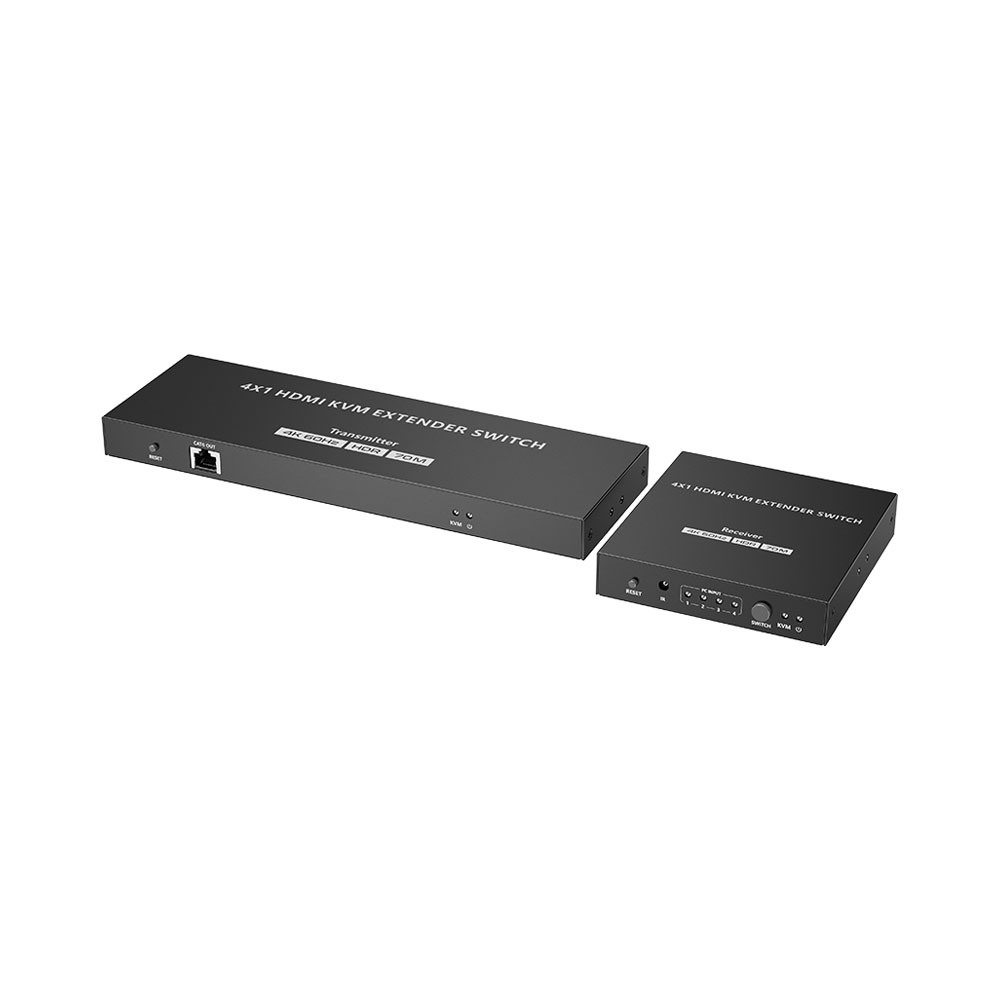

LENKENG LKV441EX | 70M 4×1 4K @60HZ HDMI KVM EXTENDER SWITCH
FEATURES:
- 4K @60Hz Resolution and backwards compatibility
- Supports 4× HDMI signal input and extends the HDMI signal up to 70m via CAT6 and above network cables
- RJ45 output to transmit HDMI signals to receiver
- Multiple switching modes: IR remote control, button or RS232
- Supports KVM control signal passback
- EDID passthrough and auto downscaling
- HDR10 supported
- Lightning, surge and ESD protection
Lenkeng LKV441EX | 70m 4×1 4K @60Hz HDMI KVM Extender Switch
FEATURES:
- 4K @60Hz Resolution and backwards compatibility
- Supports 4× HDMI signal input and extends the HDMI signal up to 70m via CAT6 and above network cables
- RJ45 output to transmit HDMI signals to receiver
- Multiple switching modes: IR remote control, button or RS232
- Supports KVM control signal passback
- EDID passthrough and auto downscaling
- HDR10 supported
- Lightning, surge and ESD protection
SPECIFICATIONS:
| Voltage/Current |
DC 5V 1A
|
|
Power Consumption
|
TX <4W
|
|
RX <4W
|
|
|
HDMI Compliance
|
HDMI 2.0 (HDR, YUV4:4:4)
|
|
HDCP Compliance
|
HDCP 2.2 and HDCP1.4
|
|
HDMI Resolutions
|
480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600, 3440×1440, 2560×1600, 2560×1440, 1920×1200
|
|
Supports Audio Formats
|
LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital Plus/Dolby TrueHD 5.1/Dolby Digital/Dolby Atmos
|
|
Transmission Speed
|
18Gbps
|
|
Video Bandwidth
|
600MHz
|
|
HDMI Port
|
4×
|
|
RJ45 Port
|
1×
|
|
RS232
|
3-Pin (GND/RxD/TxD), Baud Rate 9600
|
|
CAT6/6A/7 Transmission Distance
|
≤70m: 4096×2160 @24/25/30Hz, 3440×1440, 2560×1600, 2560×1440 |
|
Electrostatic Protection of the Whole Machine
|
Electrostatic Protection
|
| Lightning Protection | |
| Surge Protection | |
| 1a Contact Discharge Level 2 | |
| 1b Air Discharge Level 3 | |
| Implementation of the Standard: IEC61000-4-2 | |
|
Working Temperature
|
-20~60°C
|
|
Storage Temperature
|
-30~70°C
|
|
Humidity (No Condensation)
|
0~90% RH
|
|
Dimensions (L × W × H)
|
TX: 250 × 80 × 25mm
|
| RX: 106 × 103 × 25mm | |
|
Material
|
Metal
|
|
Colour
|
Black
|
|
Weight
|
TX: 298g
|
|
RX: 298g
|
Additional information
| Weight | 1.35 kg |
|---|---|
| Dimensions | 35.7 × 15.3 × 8.5 cm |
