LENKENG LKV424 | 4×4 4K HDR HDMI MATRIX SWITCH WITH RS-232

FEATURES:

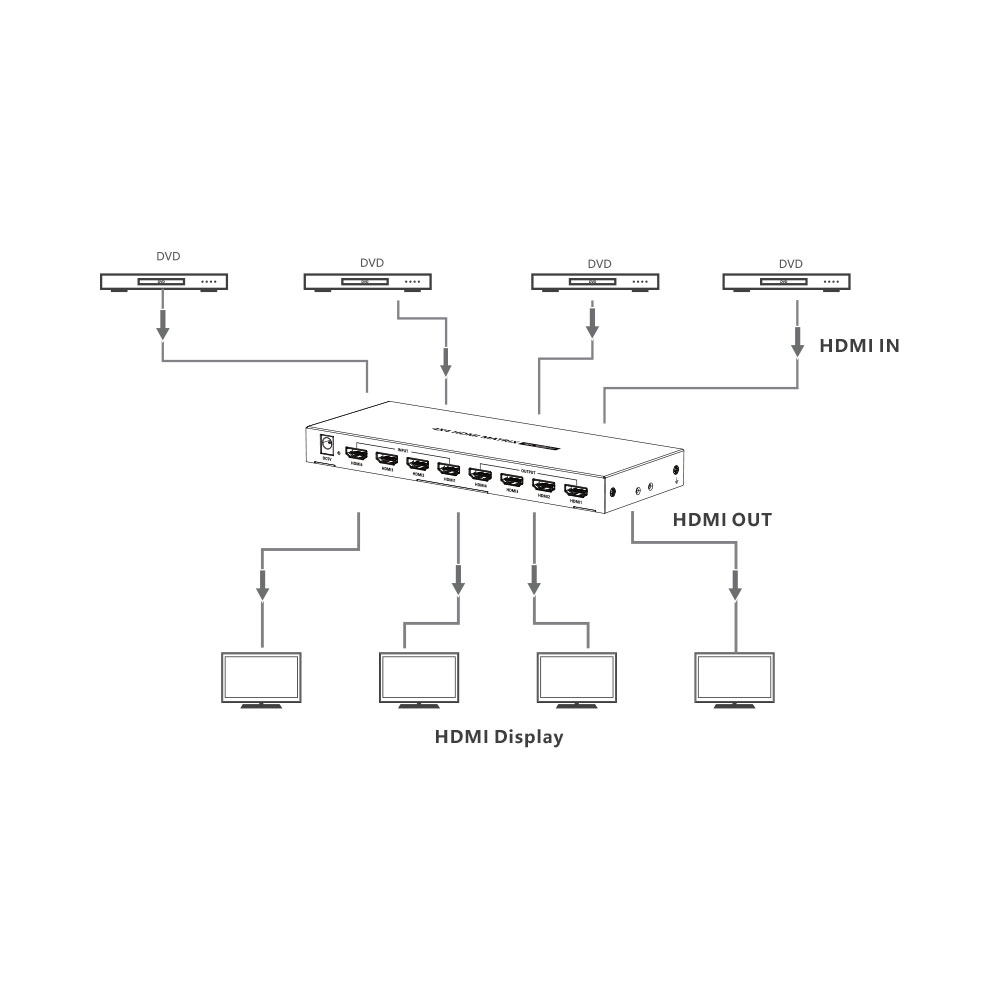

  • 4× HDMI Sources to 4× HDMI Displays
  • 4K @60Hz HDR10 4:4:4
  • Supports EDID
  • Multiple Control Methods including Remote Control
  • Any Two of the Four HDMI Ports Support Auto Down-Scaling
  • Lightning, Surge and ESD Protection

Out of stock

SKU: CNV-LKV424 Categories: , Tags: , , , , , , , , , , ,

LENKENG LKV424 | 4×4 4K HDR HDMI Matrix Switch with RS-232

FEATURES:

  • 4× HDMI Sources to 4× HDMI Displays
  • 4K @60Hz HDR10 4:4:4
  • Supports EDID
  • Multiple Control Methods including Remote Control
  • Any Two of the Four HDMI Ports Support Auto Down-Scaling
  • Lightning, Surge and ESD Protection

SPECIFICATIONS:



HDMI version
HDMI2.0 (HDR, YUV 4:4:4)
Compatible with HDCP2.2, HDCP1.4
HDMI interface
4× HDMI input, 4× HDMI output
Transmission rate
18Gbps
Bandwidth
600MHz
Resolution
480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840 × 2160 @24/25/30/60Hz, 4096 × 2160 @24/25/30/60Hz
Audio format
LPCM7.1 / DTS-HD / DTS-Audio / Dolby Digital plus /  Dolby TrueHD 7.1 / Dolby Digital 7.1CH / Dolby Atmos
RS-232
3-Pin (GND/Rx/Tx), Baud rate 9600
Voltage
DC5V 1A
Power consumption
<4W
Working temperature
-20°C~60°C
Storage temperature
-30°C~70°C
Humidity
0~90%RH (No Condensation)
Housing
Metal
Colour
Black
Weight
375g
Dimensions
210 (L) × 80.0 (W) × 21 (H) mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning and surge protection
