LENKENG LKV100USB | 150m~300m 4-Port USB2.0 Extender
FEATURES:

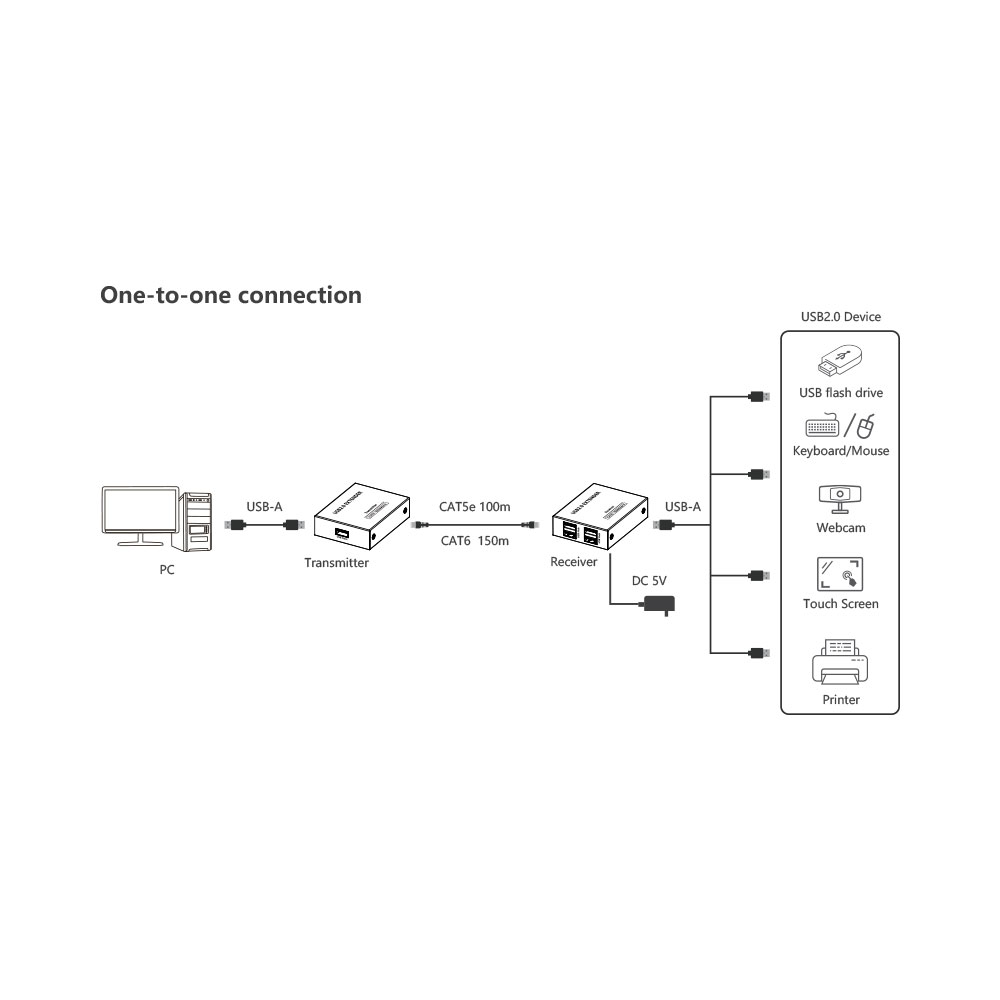

- up to 150m Over CAT6

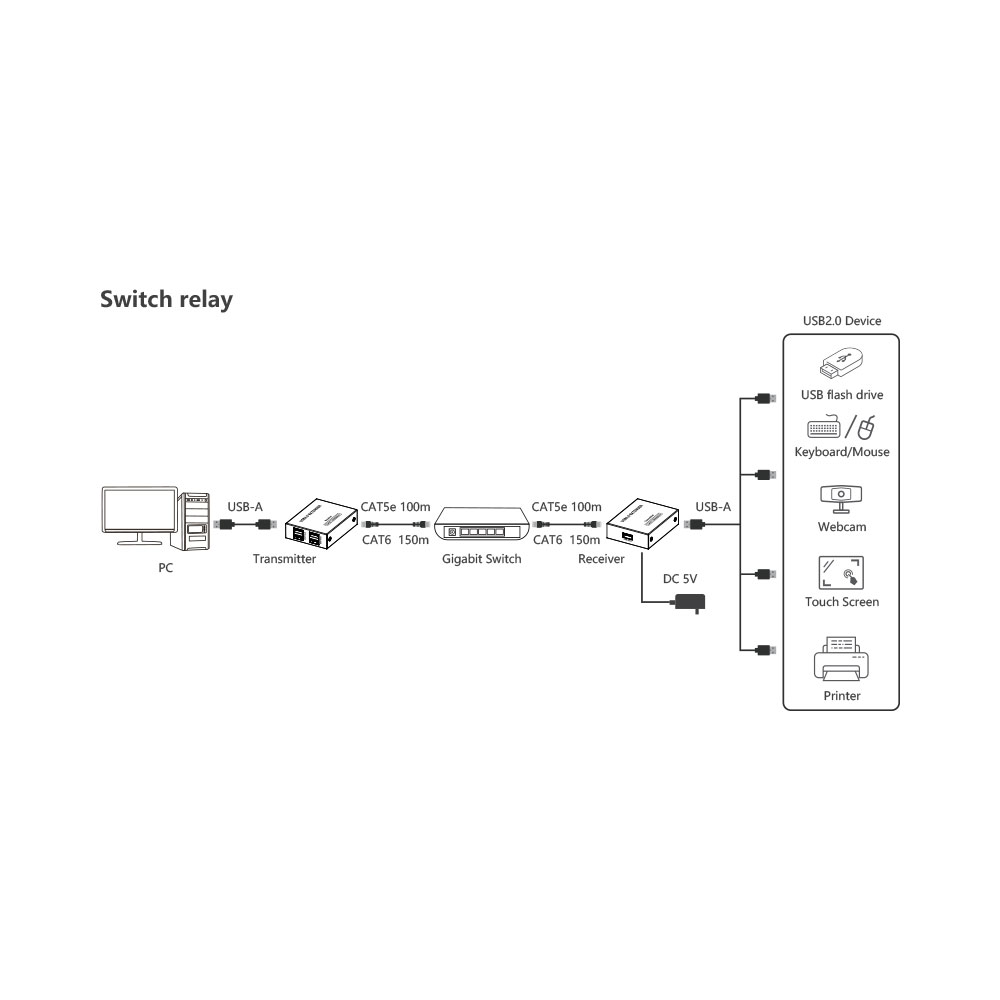

- up to 300m Over IP CAT6 (150m + 150m)
- Powered by Source
- Receiver has 4× USB2.0 Ports
SPECIFICATIONS:
| Compatibility | USB2.0, compatible with USB1.1, USB1.0 |
| Transmission Rate | Compatible with High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps) |
| Transmission Distance | CAT6 / 6A / 7 ≤150m |
| USB Device | Supports printer, camera, scanner, USB flash drive, keyboard, mouse, touch screen, etc. |
| Switch Extension | Supports gigabit switches |
| USB Hot-Plug | Support |
| Operating System | Windows, MacOS, Linux, Android |
| USB Type-A | 4× Ports USB Type-A input |
| 1× Port USB Type-A output | |
| Standard | CAT6 / CAT6A / CAT7, IEEE-568B Standard |
| Housing | Metal |
| Dimensions (L × W × H) | 76 × 60 × 21mm |
| Weight | TX 123g |
| RX 128g | |
| Colour | Black |
| Power Supply | Transmitter powered by source device |
| Receiver powered by DC5V 1A | |
| Power Consumption | TX ≤2W |
| RX ≤2W | |
| Working temperature | -20~60°C |
| Storage temperature | -30~70°C |
| Humidity | 0~90% (No condensation) |
| Protection | ESD protection |
| 1a Contact discharge level 2 (±4KV) | |
| 1b Air discharge level 3 (±8KV) | |
| Implementation of the standard: IEC61000-4-2 | |
| Lightning and surge protection |
