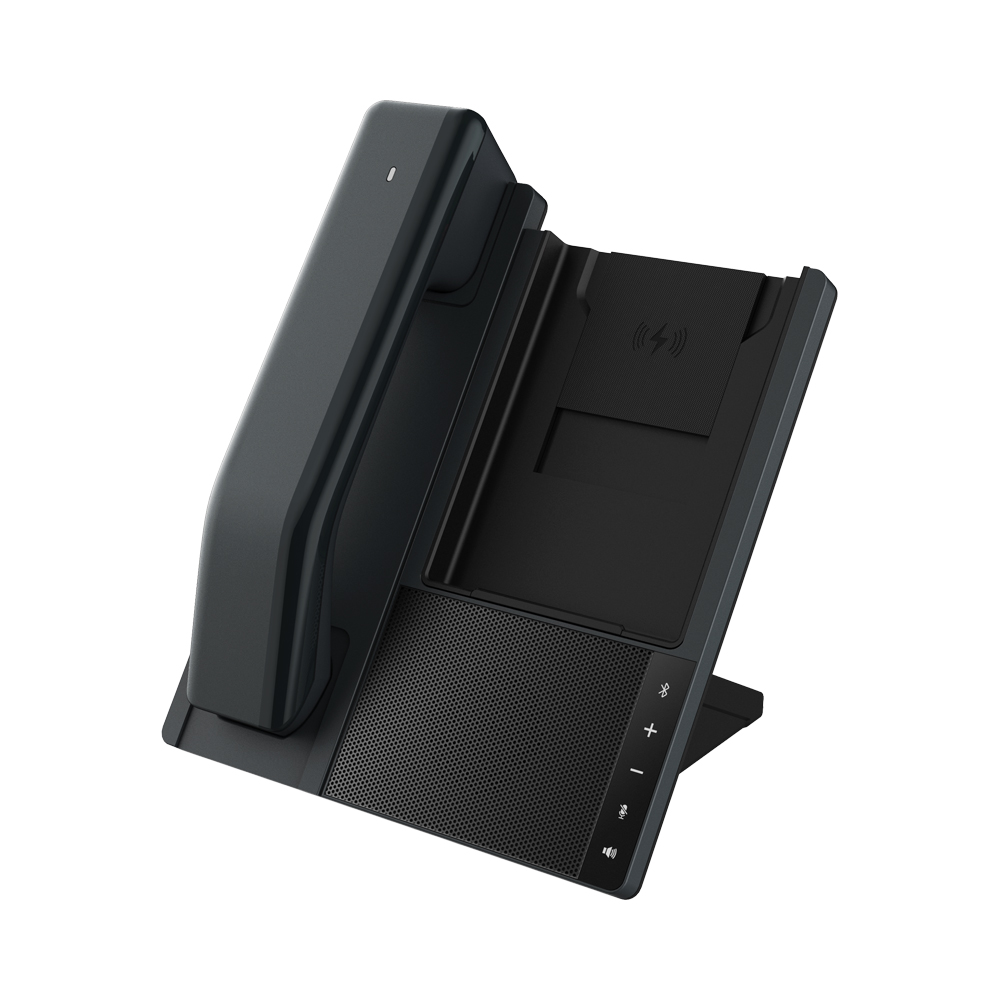

FANVIL DB20-H | ALL-IN-ONE PHONE STATION WITH A BLUETOOTH HANDSET AND 10W WIRELESS PHONE CHARGER

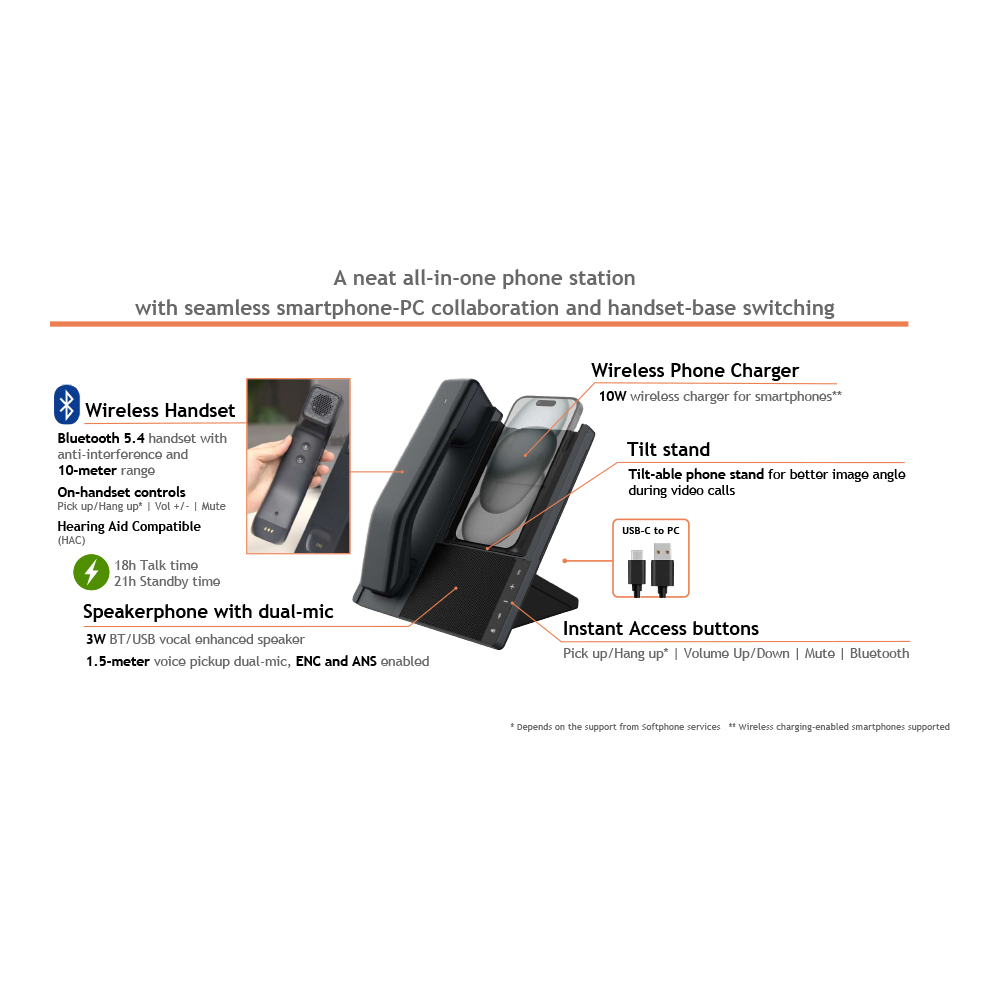

FEATURES:
- Free desk space with this all-in-one design
- Call seamlessly between softphone, UC and phone calls
- Speakerphone and bluetooth handset for smartphone and PC
- Wireless mobile phone charging station
- Adjustable mobile phone stand for better viewing angles during video conferencing
Fanvil DB20-H | All-in-One Phone Station with a Bluetooth Handset and 10W Wireless Phone Charger
Convergence for Convenience. Seamless Smartphone-PC Collaboration and Handset-Base Switching.
FEATURES:
- Free desk space with this all-in-one design
- Call seamlessly between softphone, UC and phone calls
- Speakerphone and bluetooth handset for smartphone and PC
- Wireless mobile phone charging station
- Adjustable mobile phone stand for better viewing angles during video conferencing
SPECIFICATIONS:
| BASE | |
| Microphone | |
| Type | 2× Omnidirectional Analogue Microphones |
| Voice Pickup Range | 1.5m |
| Sensitivity | -32dB Fs |
| Frequency Range | 45Hz~7KHz |
| SNR | >65dB(A) |
| Full-Duplex | |
| Beamforming | |
| Environment Noise Cancellation (ENC) | |
| Adjustive Noise Suppression(ANS) | |
| Automatic Gain Control (AGC) | |
| Reverberation Reduction | |
| Speakerphone | |
| Speaker Size | ø40mm |
| Rated Power | 4Ω 3W |
| Sensitivity | 87dB ±2dB |
| Frequency Range | 195Hz~20KHz |
| Impedance | 4Ω @1Khz |
| Max. Input Power | 5W |
| Music-Mode Bandwidth | 195Hz~20KHz |
| Speak-Mode Bandwidth | 195Hz~8KHz |
| Audio Codecs | SBC |
| Power Supply | 12V 1.5A |
| Power Consumption | Max.18W |
| WIRELESS HANDSET | |
| Microphone | |
| Type | 1× Omnidirectional Analogue Microphone |
| Sensitivity | -38dB Fs |
| Frequency Range | 45Hz~8KHz |
| Battery Type | Lithium Polymer Battery |
| Battery Capacity | 300mAh |
| Talk Time | 18-hours |
| Charging Time | 3.5-hours |
| Standby Time | 21-hours (Automatically Shuts Down if no Operation is Performed for 10-minutes) |
| Hearing Aid Compatible (HAC) | |
| WIRELESS CHARGING | |
| Number of Wireless Charging Coils | 1× |
| Output Power | 10W |
| Effective Distance of Wireless Charging | Coil is Aligned in the Centre within a Diameter Range of 3~5mm |
| CONNECTIVITY | |
| Base (PC / Mobile Device) | USB Type-C / Bluetooth |
| Wireless Handset | Bluetooth |
| Bluetooth Version | 5.4 |
| Profiles | A2DP, HSP, HFP |
| Operating Range | up to 10m |
| Pairing List | up to 8× Devices |
| Simultaneous Connections | 2× |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | Base 204.8 × 174.9 × 114.8mm |
| Handset 203.7 × 45.8 × 47mm | |
| Weight | Base: 561g |
| Wireless Handset: 190g | |
| Working Temperature | -10~60°C |
| Working Humidity | 10~95% RH |
| PACKAGE CONTENTS | |
| DB20-H All-in-One Phone Station | |
| Bluetooth Handset | |
| Wireless Charge Card | |
| Power Adapter | |
| USB Type-A to Type-C Cable | |
| Quick Start Guide | |
| Safety Information and Declaration | |
Additional information
| Weight | 1.28 kg |
|---|---|
| Dimensions | 24 × 23.3 × 13.3 cm |
