FANVIL CA400 | ALL-IN-ONE WIRELESS CONFERENCE SOLUTION – SPEAKERPHONE, 4K CAMERA AND RECEIVER HUB

FEATURES:



  • Wireless 4K Screen-Sharing for Real-time Presentations – Eliminate tedious steps – with a simple press, users can effortlessly enjoy a 4K TV display, making the entire experience smooth and productive.
  • All-in-One Design. Combine Audio, Video and Screen Sharing Together – The innovative and convenient all-in-one design promotes efficient meetings. With comprehensive BYOD support, it is easy to connect the speaker to a laptop using a USB Type-C cable.
  • Clutter-Free Collaborative Spaces and Access Camera Wirelessly – Effortlessly stream 1080p video from your laptop wirelessly, simplifying and organising your office space. Achieve a one-stop setup in three easy steps and bid farewell to tangled cables.
  • 8-Array Microphone and 3W Enhanced Speaker to Present Superior Audio Quality – Driven by advanced technologies (AEC, ANS, AGC, and vocal enhancement), automatically balances voices, suppresses noise and eliminates echoes, ensuring a stable and natural sound.
  • Camera with Auto-Framing, Delivering Detailed Images – With a wide-angle coverage of 118.5°, a 5× digital zoom and auto-framing technology, the camera will automatically zoom in / out to frame all participants, users can also adjust the direction and focal length with an OSD remote control.

Fanvil CA400 | All-in-One Wireless Conference Solution - Speakerphone, 4K Camera and Receiver Hub

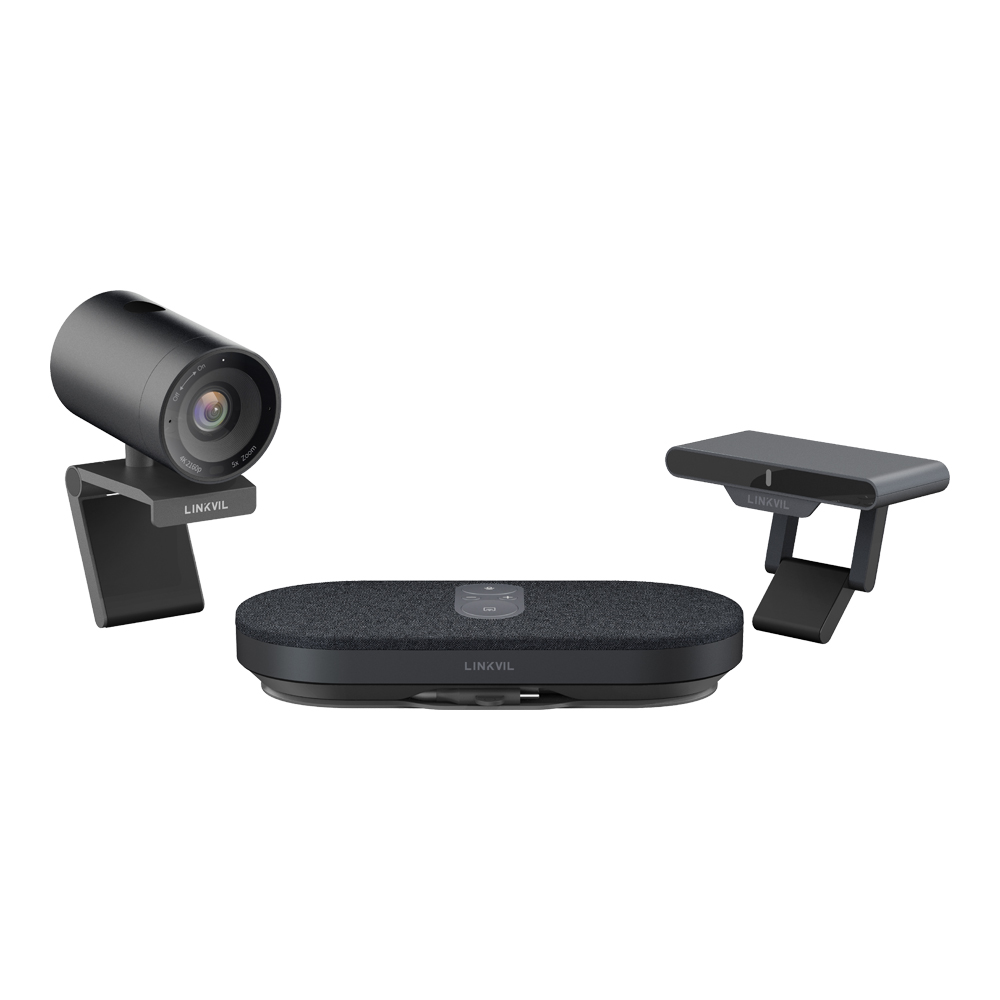

Designed for small and medium meeting rooms up to 32m², the CA400 system consists of a unique speakerphone MS10, that supports wireless screen sharing, a receiver RC10, and a USB camera CM70.
The CA400 achieves far-field voice pickup, delivering HD crystal-clear sound. Participants can also wirelessly cast at 4K and access FHD video streaming.

FEATURES:

  • Wireless 4K Screen-Sharing for Real-time Presentations - Eliminate tedious steps - with a simple press, users can effortlessly enjoy a 4K TV display, making the entire experience smooth and productive.
  • All-in-One Design. Combine Audio, Video and Screen Sharing Together - The innovative and convenient all-in-one design promotes efficient meetings. With comprehensive BYOD support, it is easy to connect the speaker to a laptop using a USB Type-C cable.
  • Clutter-Free Collaborative Spaces and Access Camera Wirelessly - Effortlessly stream 1080p video from your laptop wirelessly, simplifying and organising your office space. Achieve a one-stop setup in three easy steps and bid farewell to tangled cables.
  • 8-Array Microphone and 3W Enhanced Speaker to Present Superior Audio Quality - Driven by advanced technologies (AEC, ANS, AGC, and vocal enhancement), automatically balances voices, suppresses noise and eliminates echoes, ensuring a stable and natural sound.
  • Camera with Auto-Framing, Delivering Detailed Images - With a wide-angle coverage of 118.5°, a 5× digital zoom and auto-framing technology, the camera will automatically zoom in / out to frame all participants, users can also adjust the direction and focal length with an OSD remote control.

SPECIFICATIONS:

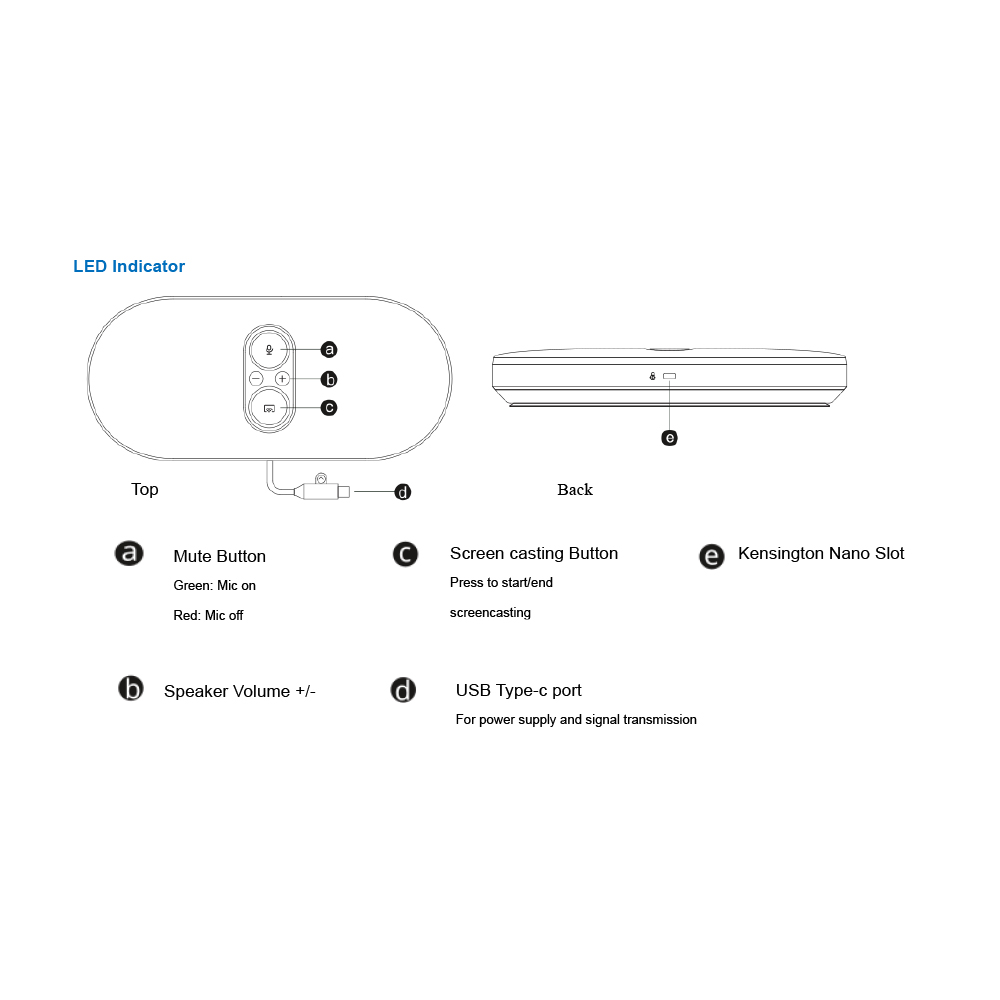

SCREEN-SHARING SPEAKERPHONE
Max. Screen Share Output Resolution 1920×1080 @30fps
Microphone
Built-In 8× MEMS Microphones for 360° Pickup
Pick-up Range 4m
Signal to Noise Ratio (SNR) 64.5dB(A)
Sensitivity -26dBFS @1kHz (0dB=1V/Pa)
Acoustic Overload Point 119dB SPL <10% @1kHz
Frequency 20Hz-10KHz
Duplex
Beamforming
Automatic Noise Suppression
Acoustic Echo Cancellation
Automatic Gain Control
Speaker
Speaker 4Ω 3W
Speaker Size 50mm
Sensitivity 1KHz 85dB ±3dB @1m, 3W
Signal to Noise Ratio (SNR) 50dB
Frequency Range 200Hz~10KHz Max. 5%
Max. Sound Pressure Level 85dB SPL @1m @3W
Background Noise <30dB
Total Harmonic Distortion 200Hz~10KHz Max. 5%

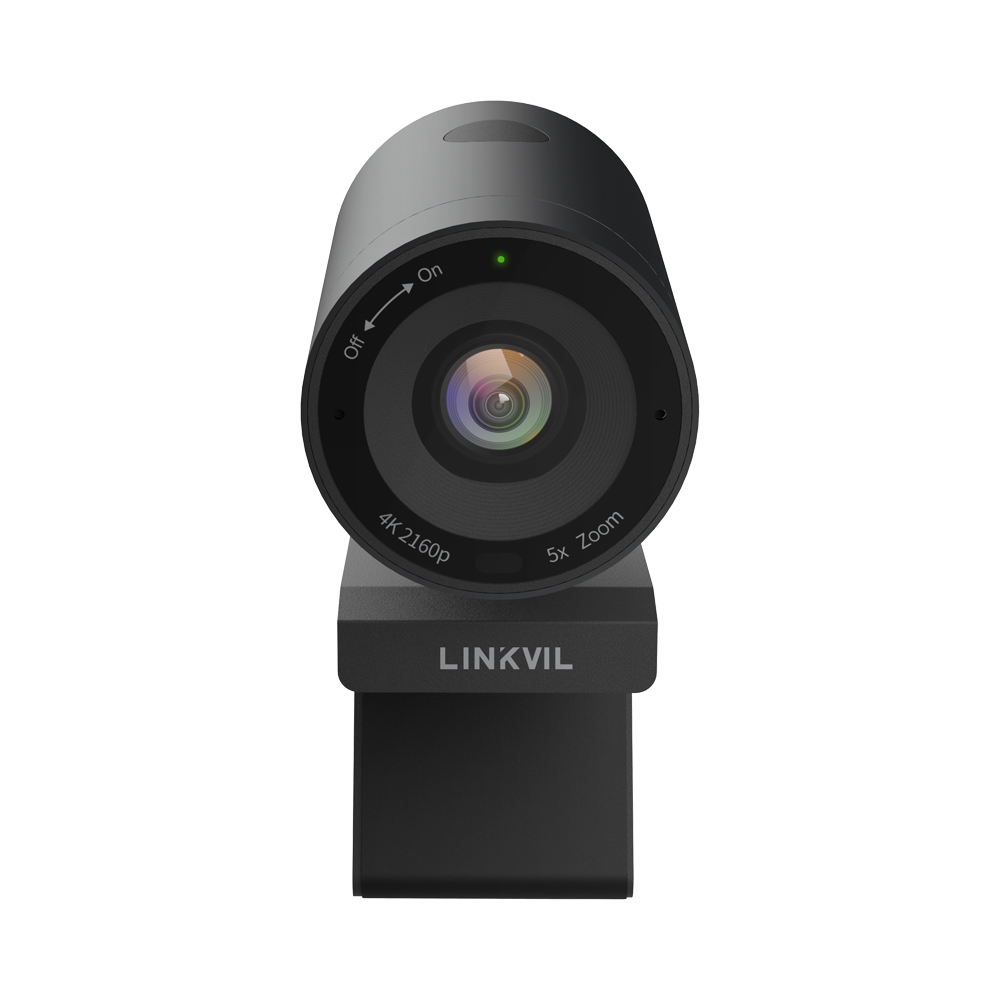

USB CAMERA
Sensor Type IMX 415 (1/2.8") 3840×2160
Output Resolution MJPEG / H264 / H265 / YUV / NV12 @30Hz (YUV and NV12 Don‘t Support 4K and 2K Resolutions)
3840×2160 / 2560×1440 / 1920×1080 / 1280×720 / 1024×576 / 960×540 / 800×448 / 640×360 / 320×180 / 960×720 / 800×600 / 640×480 / 480×270 / 352×288 / 320×240
FOV DFOV 118.5° / HFOV 109.9° / VFOV 74.6°
Auto Framing Auto
F/No F2.5
Zooming 5× Digital Zoom
Maximum Resolution USB3.0: 3840×2160 @60Hz
USB2.0: 1920×1080 @30Hz

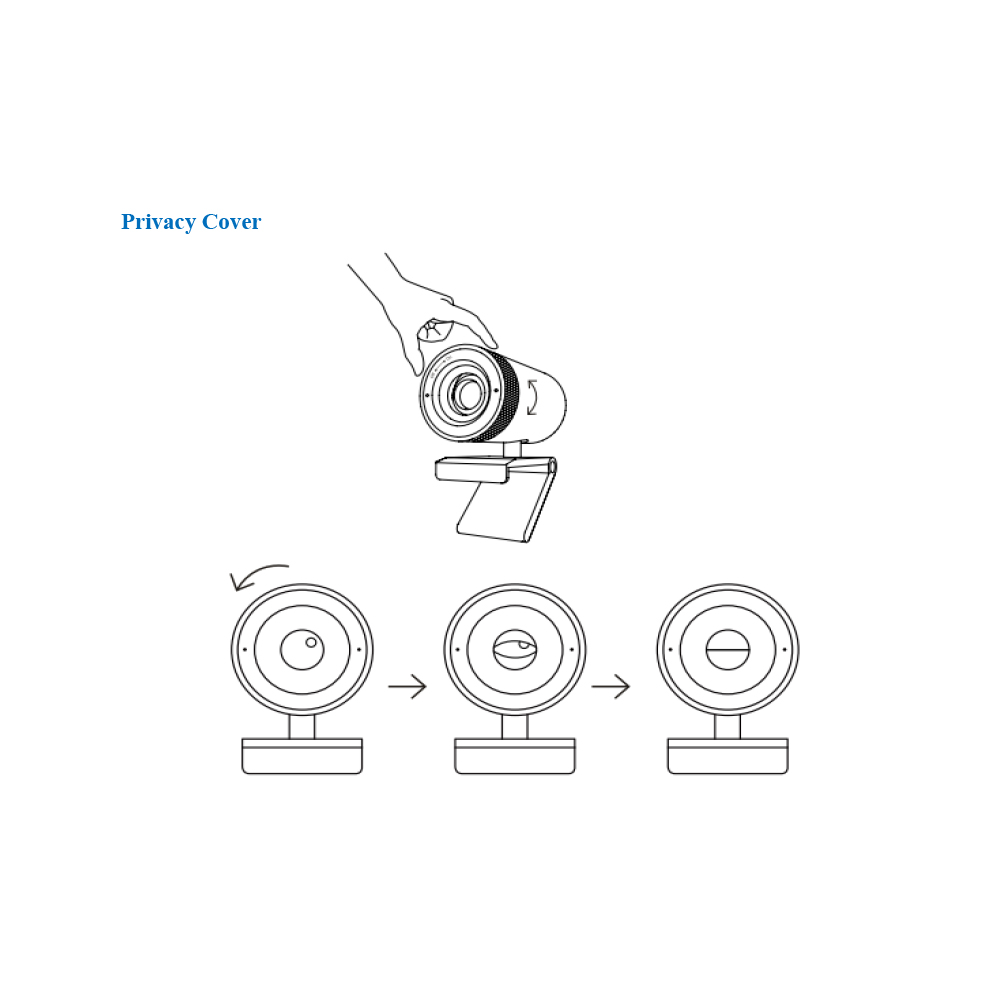

Security Protection Manual Camera Lens Cover
Microphone
Microphone Type 2× Electret Microphones
Pick-up Range 4m
Signal to Noise Ratio 94dB SPL @1KHz 65dB(A)
Microphone Sensitivity 94dB SPL @1KHz - 30 ±2dB FS
Duplex
Automatic Noise Suppression
Automatic Gain Control
Physical Character Magnetic Attraction

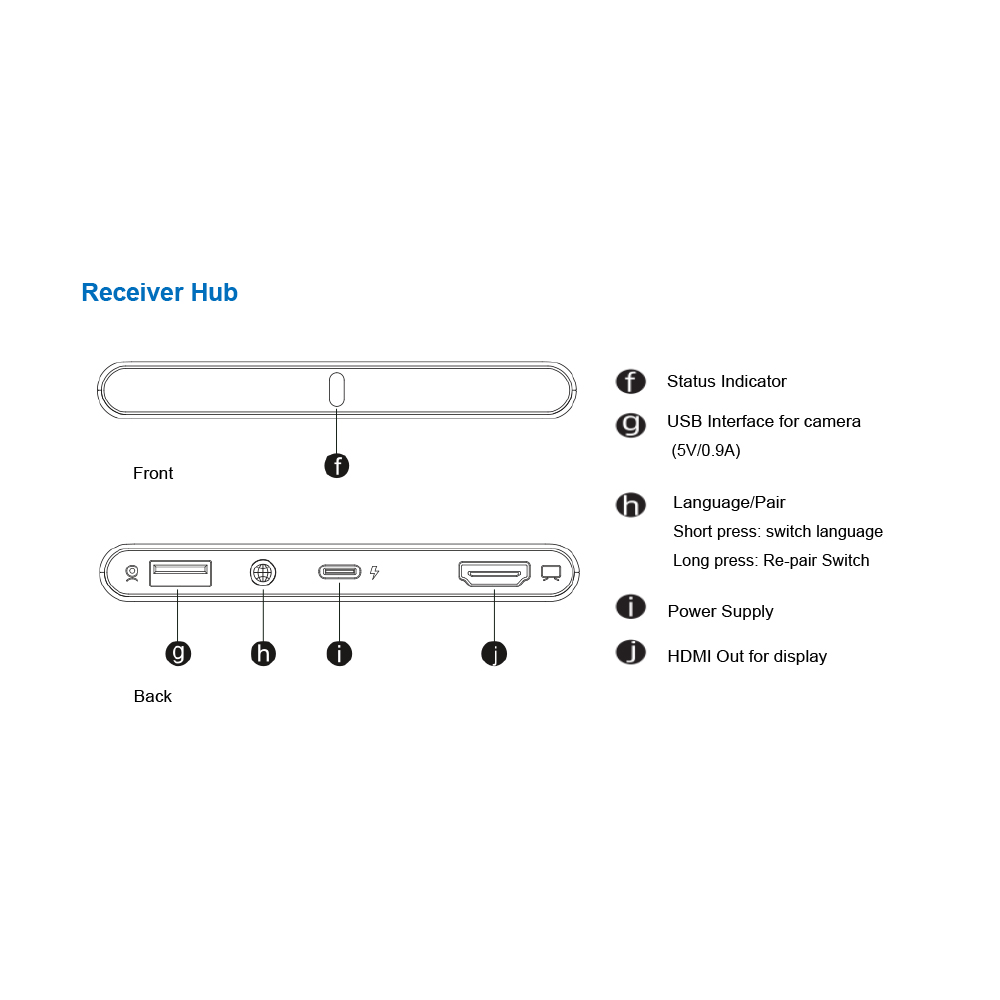

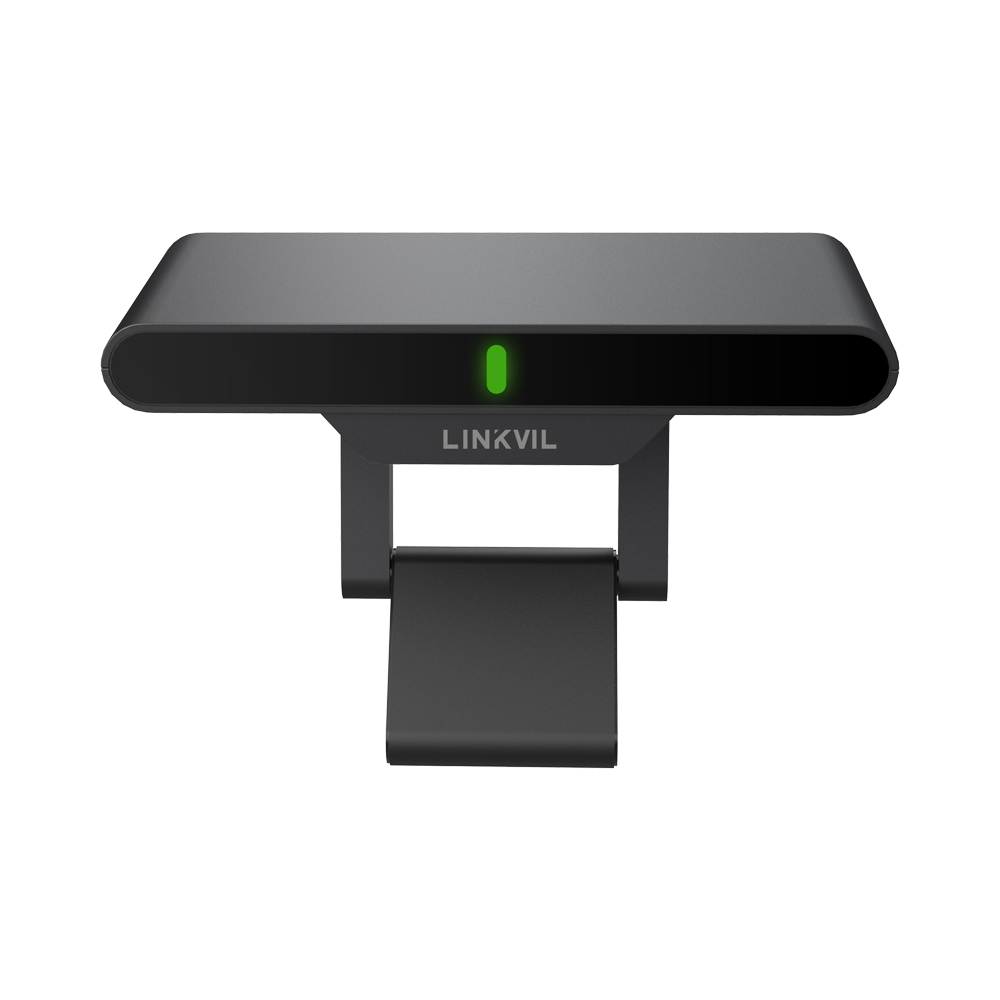

RECEIVER
Wireless
Protocol 802.11 a/n/ac
Wireless Transmission Protocol Quick UDP Internet Connections
Transmission Distance up to 10m
Frequency Bands and the Max. Transmitted Power (for EU) 5180~5320MHz (5.0GHz), Max. 20dBm
5500~5700MHz (5.0GHz), Max. 20dBm
Camera Streaming
Max. Output Resolution 1920×1080 @30fps
Supported Camera Type UVC Camera
Format Supported H.264
Physical Character Magnetic Attraction
PHYSICAL SPECIFICATIONS
Dimensions Speakerphone 180 × 81 × 32mm
USB Camera 80 × 75 × 53mm
Receiver 102 × 45 × 20mm
Weight Speakerphone 385g
USB Camera 210g
Receiver 70g
Working Temperature and Humidity Temperature 0~40°C
Humidity 10~90% RH
I/O INTERFACE
Speakerphone USB Type-C PD plus DP ALT
USB Camera USB Type-C
Receiver 1× HDMI, 1× USB Type-C PD, 1× USB3.0 Type-A
OPERATING SYSTEM
Win 10/11, Mac 10.8 and Later
PACKAGE CONTENTS
1× MS10 Speakerphone
1× CM70 USB Camera
1× RC10 Receiver
1× Remote Control
1× Power 5V 2A Adapter
1× 1.5m HDMI Cable
1× 20cm USB Type-C to HDMI and USB Type-A/C Adapter
1× 40cm USB Extension Cable
1× 1.8m USB Type-A/C USB Cable
1× Quick Start Guide

Additional information

Weight 1.67 kg
Dimensions 23.3 × 18.8 × 11 cm
