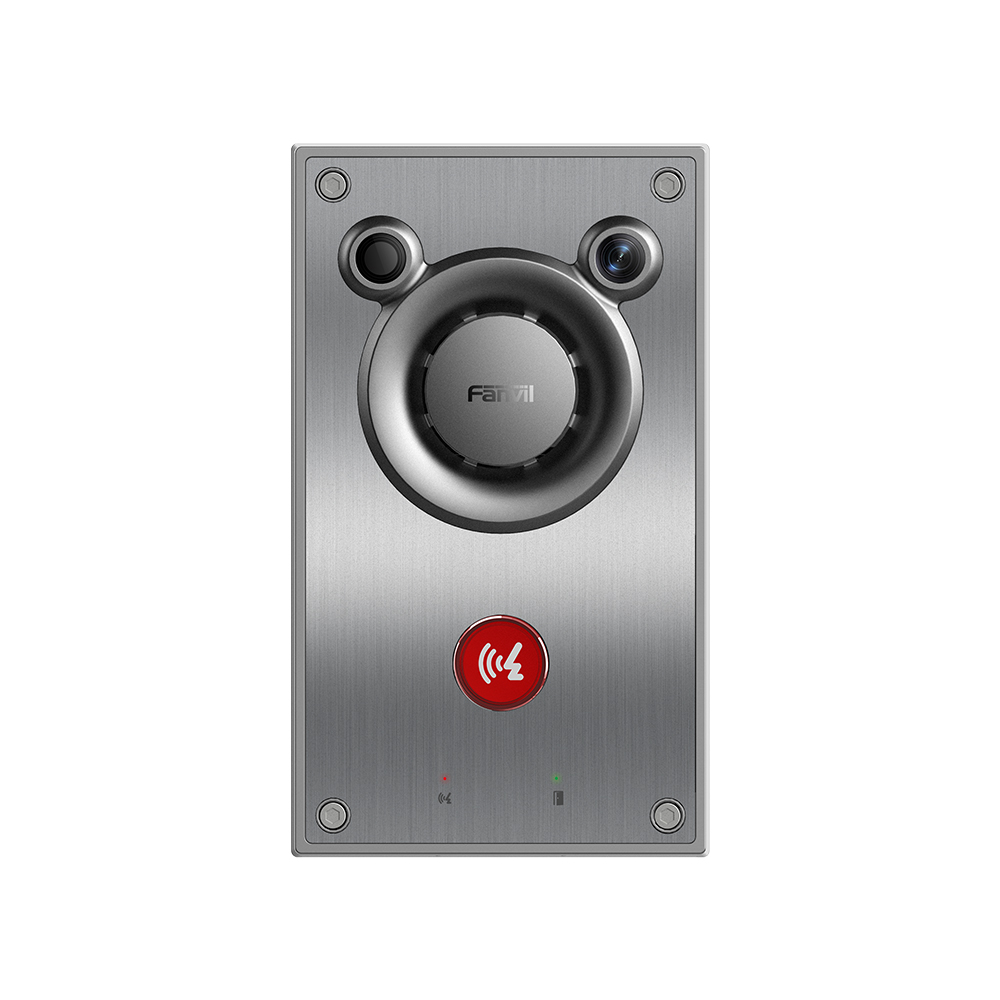

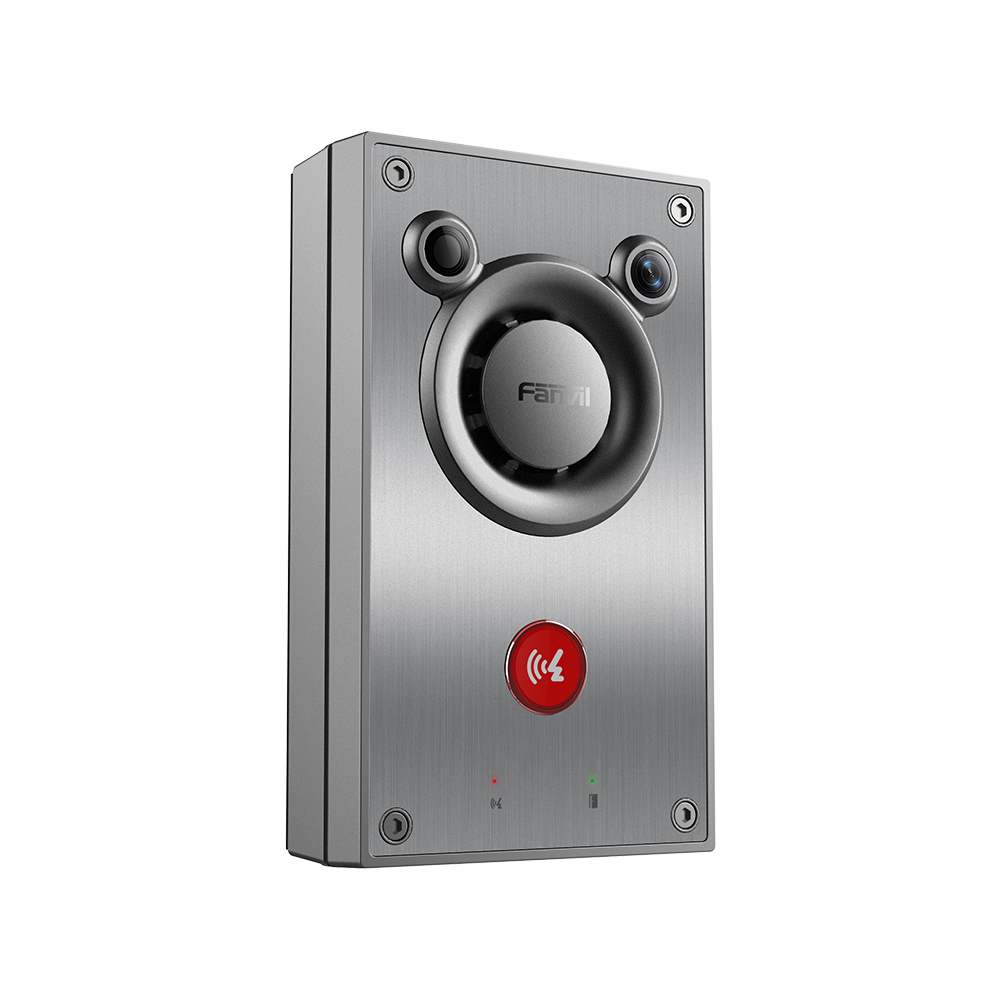

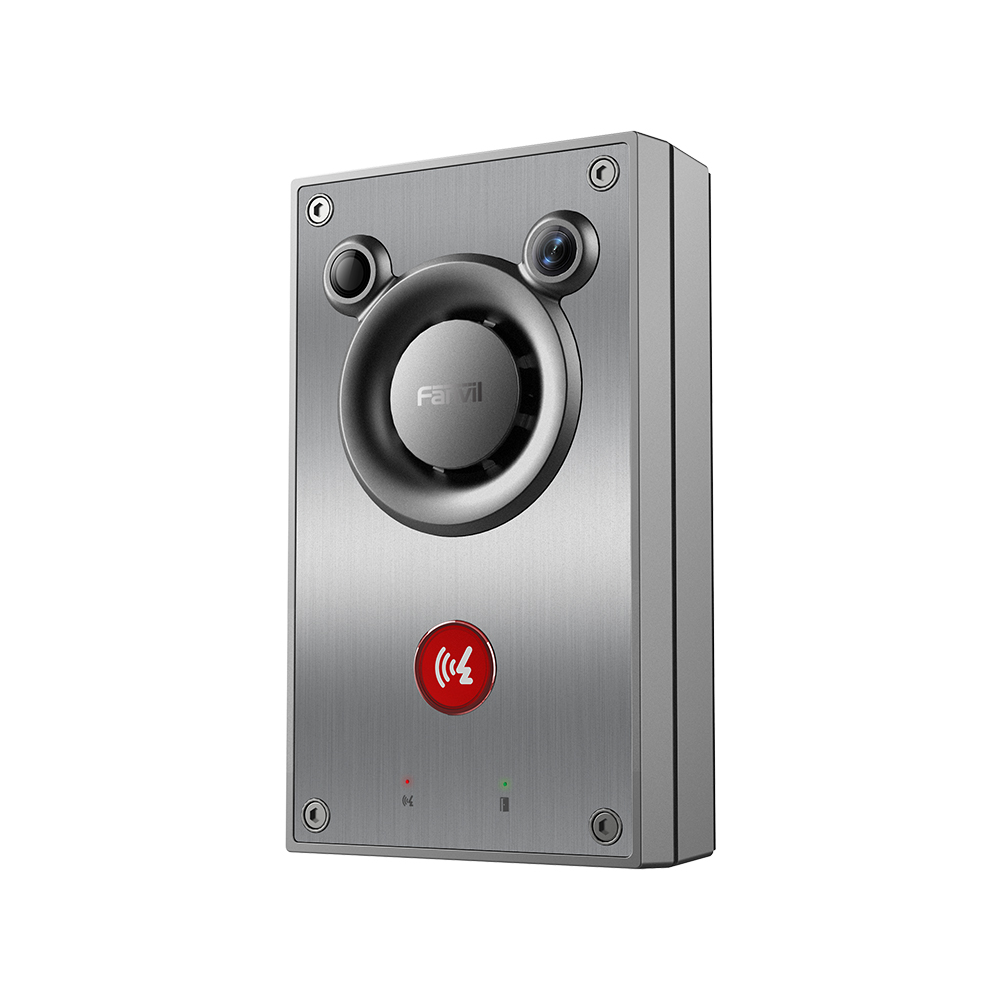

FANVIL A12V | 4MP OUTDOOR VIDEO INTERCOM WITH 10W SPEAKER
FEATURES:
- HD Video – Built-in 4MP Starlight HD camera and infrared light, enabling high-definition video calls
- Excellent Sound Quality – With a unique turbine cavity design, bringing extraordinary audio
- Intelligent Audio – Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
- Loud Sound – 10W speaker, 90dB hands-free call and 100dB broadcast, producing thunderous and immersive sound
- Remote Pickup – Remote pickup can reach up to 5m and accurately captures every word
- Self-Check Function – Voice loop self-check, simplify maintenance, reduce costs
- Recording Broadcast – Built-in SD card slot supports recording and preset broadcast, flexible and diverse
- Beautiful and Durable – Stainless steel panel with aluminium-alloy structure, corrosion resistance, up to IK10 anti-theft
- Protection Grade – IP66 waterproof and dustproof grade, suitable for all kinds of harsh environments
- Friendly Interaction – 27mm backlit big button, dual status indicator (call, control), intuitive and friendly operation
- High Compatibility – Compatible with SIP-based mainstream IP PBX / softswitch / IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.
- Alarm Light – Built-in 1× wet node output, can drive the external alarm light

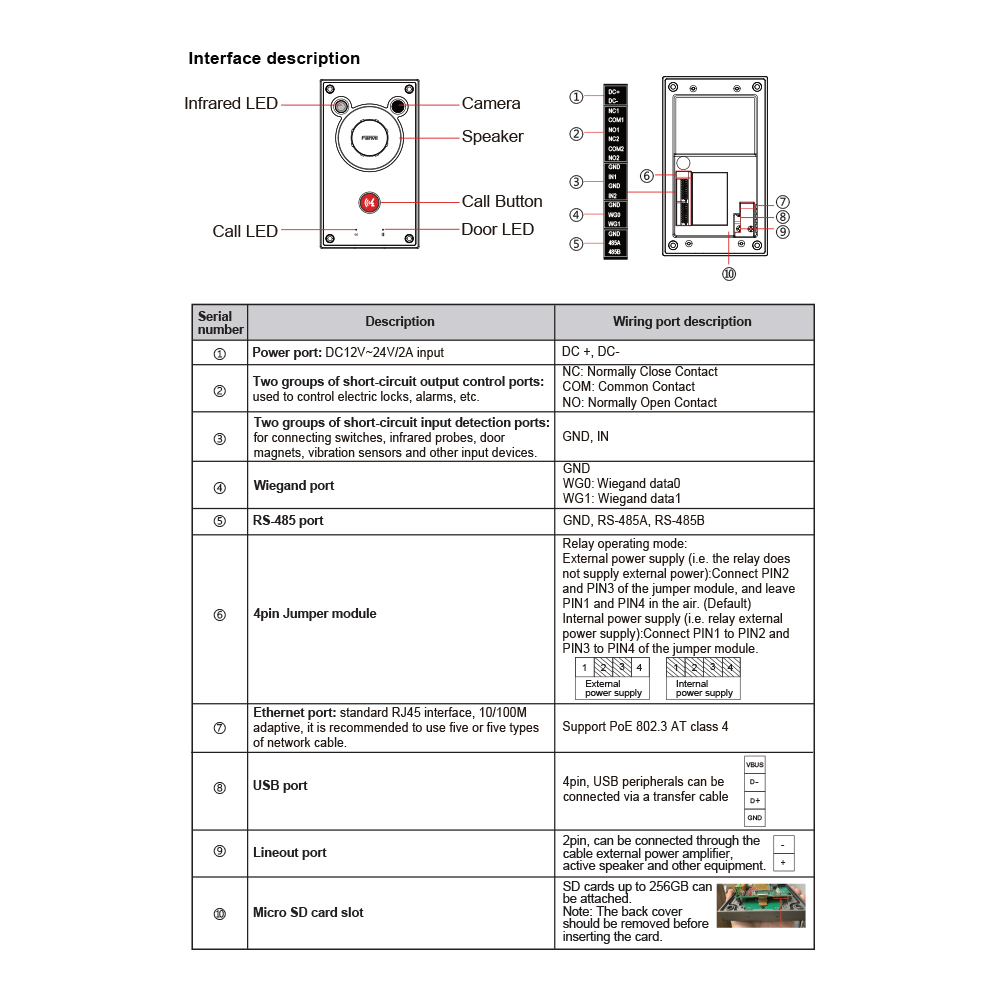

- Rich Interfaces – Audio line output, short-circuit input / output, Wiegand, USB, RS485, to meet diverse needs
Fanvil A12V | 4MP Outdoor Video Intercom with 10W Speaker
Fanvil A12V Video Intercom is a brand-new intercom featuring a 10W speaker and turbo sound chamber for powerful sound quality. With Fanvil’s advanced dual-microphone noise reduction and voice enhancement technology, it captures clear audio even in challenging environments. Equipped with a 4MP starlight wide-angle camera, built-in infrared lighting and HDR technology, it ensures excellent imaging. Designed with a unique combination of a stainless-steel panel and integrated aluminium-alloy structure, the A12V stands out with exceptional corrosion resistance and a high protection rating, making it highly durable and adaptable to diverse environments.
FEATURES:
- HD Video - Built-in 4MP Starlight HD camera and infrared light, enabling high-definition video calls
- Excellent Sound Quality - With a unique turbine cavity design, bringing extraordinary audio
- Intelligent Audio - Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
- Loud Sound - 10W speaker, 90dB hands-free call and 100dB broadcast, producing thunderous and immersive sound
- Remote Pickup - Remote pickup can reach up to 5m and accurately captures every word
- Self-Check Function - Voice loop self-check, simplify maintenance, reduce costs
- Recording Broadcast - Built-in SD card slot supports recording and preset broadcast, flexible and diverse
- Beautiful and Durable - Stainless steel panel with aluminium-alloy structure, corrosion resistance, up to IK10 anti-theft
- Protection Grade - IP66 waterproof and dustproof grade, suitable for all kinds of harsh environments
- Friendly Interaction - 27mm backlit big button, dual status indicator (call, control), intuitive and friendly operation
- High Compatibility - Compatible with SIP-based mainstream IP PBX / softswitch / IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.
- Alarm Light - Built-in 1× wet node output, can drive the external alarm light
- Rich Interfaces - Audio line output, short-circuit input / output, Wiegand, USB, RS485, to meet diverse needs
SPECIFICATIONS:
| OS | Linux |
| DEVICE FEATURE | |
| SIP Line | 2× |
| Tamper-Proof | Yes |
| Link with Third Party System | Yes |
| Integration with Third Party Systems | Yes |
| Auto-Provisioning via DHCP / TR069 / SIP PNP | Yes |
| AUDIO FUNCTION | |
| HD Audio | Yes |
| Wideband Codec | G.722, Opus |
| Narrowband Codec | G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K |
| Power Amplifier | 10W |
| Noise Reduction | Yes |
| SPL | 100dB (1m/1W) |
| 1m Full-Duplex | 90dB |
| 1m Half-Duplex | 100db |
| 1m Broadcast | 100db |
| AVC | Yes |
| AEC | Yes |
| ONVIF | Yes |
| RTSP | Yes |
| VIDEO FUNCTION | |
| Image Sensor | 1/2.9” Colour CMOS |
| Video Codec | H.264 |
| Built-In Camera | Yes (4MP) |
| Lens | F2.0, Fixed Iris |
| Resolution | 720p / 1080p |
| Minimum Illumination | 0.05 Lux |
| Fill Light | Infrared Lighting |
| Field of View | Horizontal: 103° |
| Vertical: 54.8° | |
| HARDWARE | |
| PoE Power Supply | Yes |
| DC Power Port | DC12~24V 2A |
| TF Card Slot | Yes |
| USB Interface | Yes |
| Button Backlight | Yes |
| Microphone | Dual Microphone |
| Audio Line-Out | 1× |
| Short-Circuit Output Interface | 2× |
| Short-Circuit Input Interface | 2× |
| RS485 Interface | 1× |
| Ethernet Interface | RJ45 PoE |
| OTHER | |
| Face Shell | Stainless Steel |
| Installation | Wall-Mounted |
| Flush-Mounted | |
| Protection Level | IP66 |
| IK10 | |
| Working Temperature | -40~70°C |
| Humidity | 10~95% |
| Dimensions | 205 × 120 × 47mm |
Additional information
| Weight | 1.72 kg |
|---|---|
| Dimensions | 28.6 × 16.8 × 8 cm |
