DELOCK RJ45 CAT6 SECURE KEYSTONE AND TOOL (86404 | 86411)
KEYSTONE SPECIFICATIONS:
Connectors:
External:
1× RJ45 Secure (8P/8C) >
Internal:
1× LSA Block
CAT6 Specification
Shielded (STP)
TIA-568A/B Pinout
For Keystone Ports with 19.2 × 14.9mm
Dimensions (L × W × H): ca. 38.5 × 22.3 × 17.3mm
TOOL SPECIFICATIONS:
Dimensions (L × W × H): ca. 80.5 × 23 × 11mm
Delock RJ45 CAT6 Secure Keystone and Tool (86404 | 86411)
This module can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

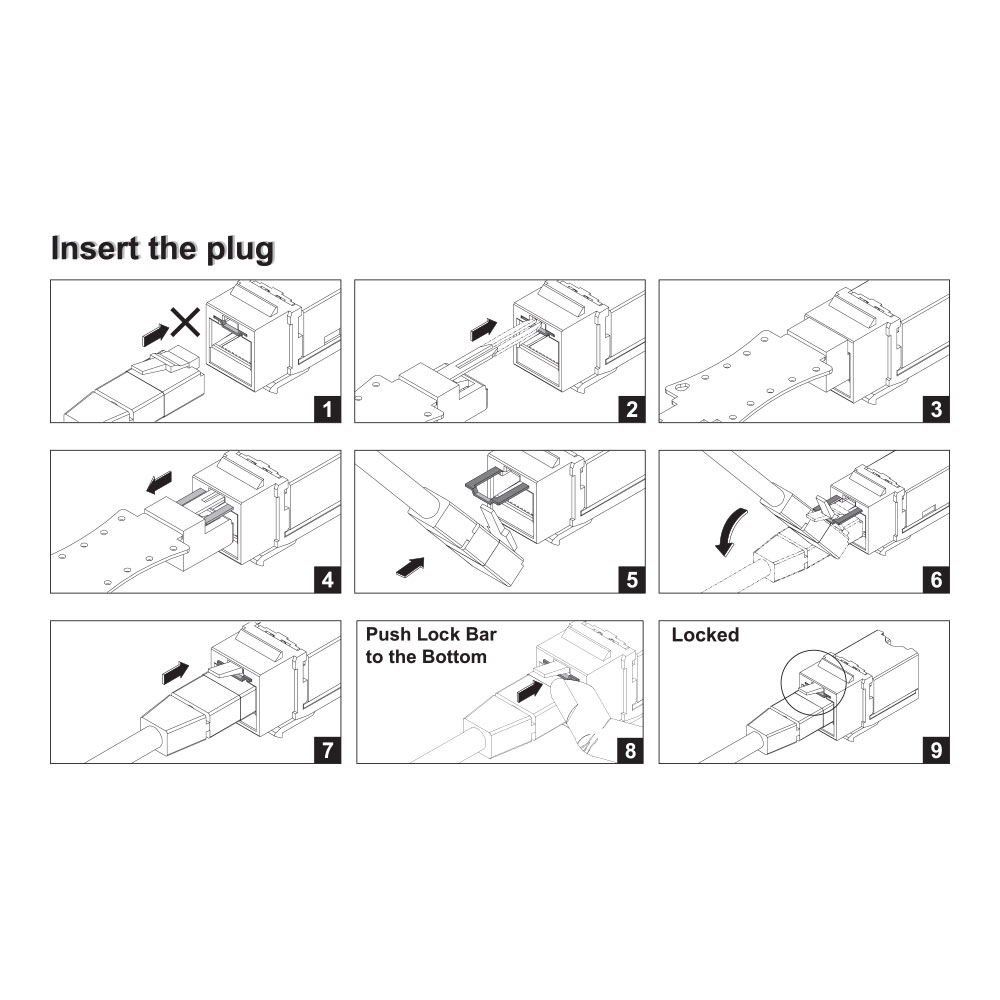

The RJ45 port has an integrated security mechanism with two functions:
1. The socket can be blocked and secured from unauthorised use.

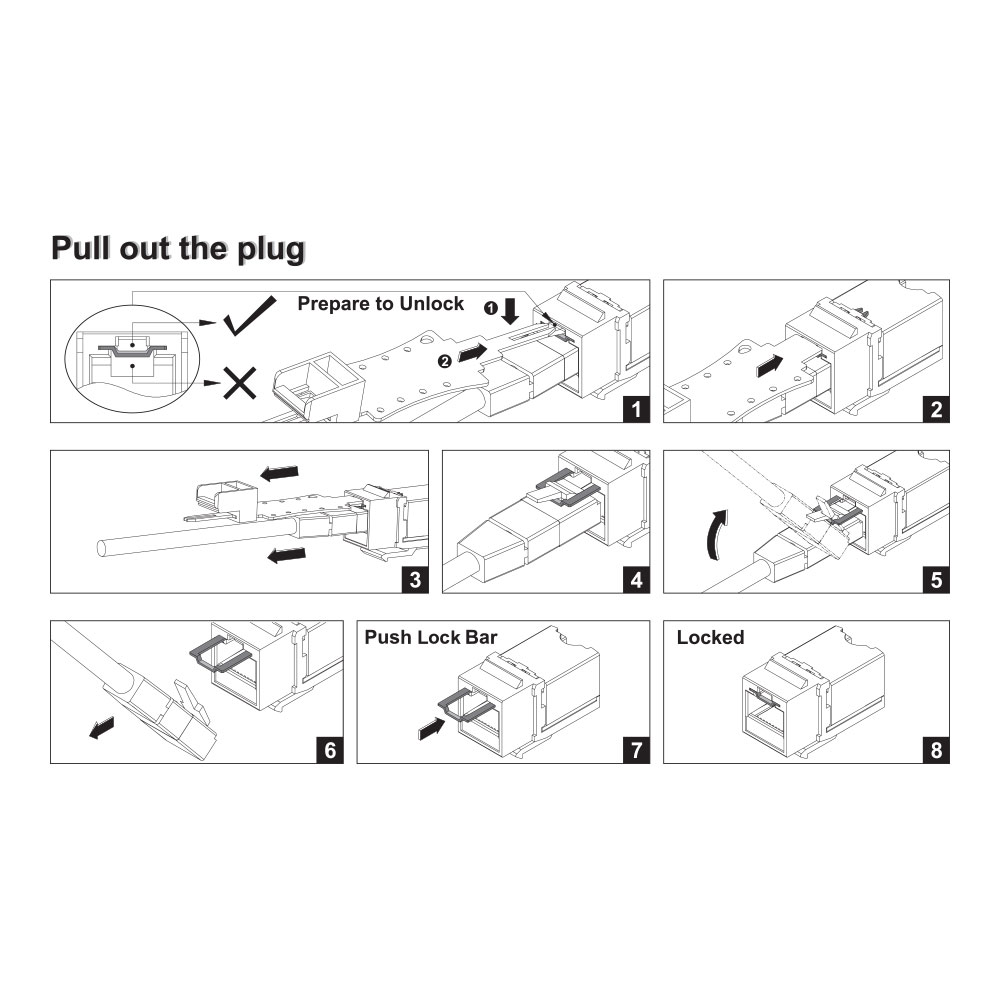

2. The patch cable can be interlocked and is protected against removal.

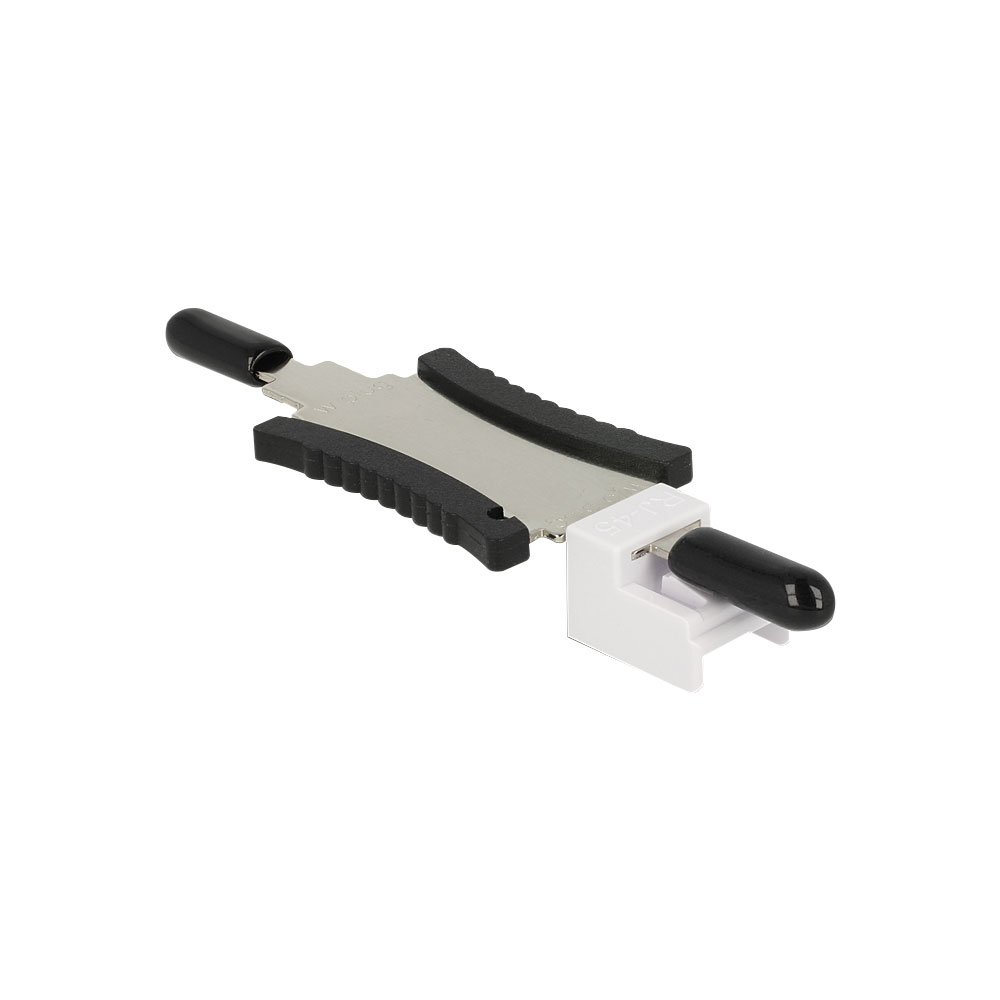

This allows control of physical access to a network in safety-critical areas, e. g. in public places or data centres. The system can be used with standard patch cables; a separately available tool is needed to open the lock.
KEYSTONE SPECIFICATIONS:
Connectors:
External:
1× RJ45 Secure (8P/8C) >
Internal:
1× LSA Block
CAT6 Specification
Shielded (STP)
TIA-568A/B Pinout
For Keystone Ports with 19.2 × 14.9mm
Dimensions (L × W × H): ca. 38.5 × 22.3 × 17.3mm
TOOL SPECIFICATIONS:
Dimensions (L × W × H): ca. 80.5 × 23 × 11mm
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Type | Keystone, Keystone Tool |
