CYP DCT-18N | ANALOGUE STEREO LIP SYNC CORRECTOR
FEATURES:
- Analogue to analogue signal bypass
- 8× Different sector adjustments on audio delay time
- Low power consumption
CYP DCT-18N | Analogue Stereo Lip Sync Corrector

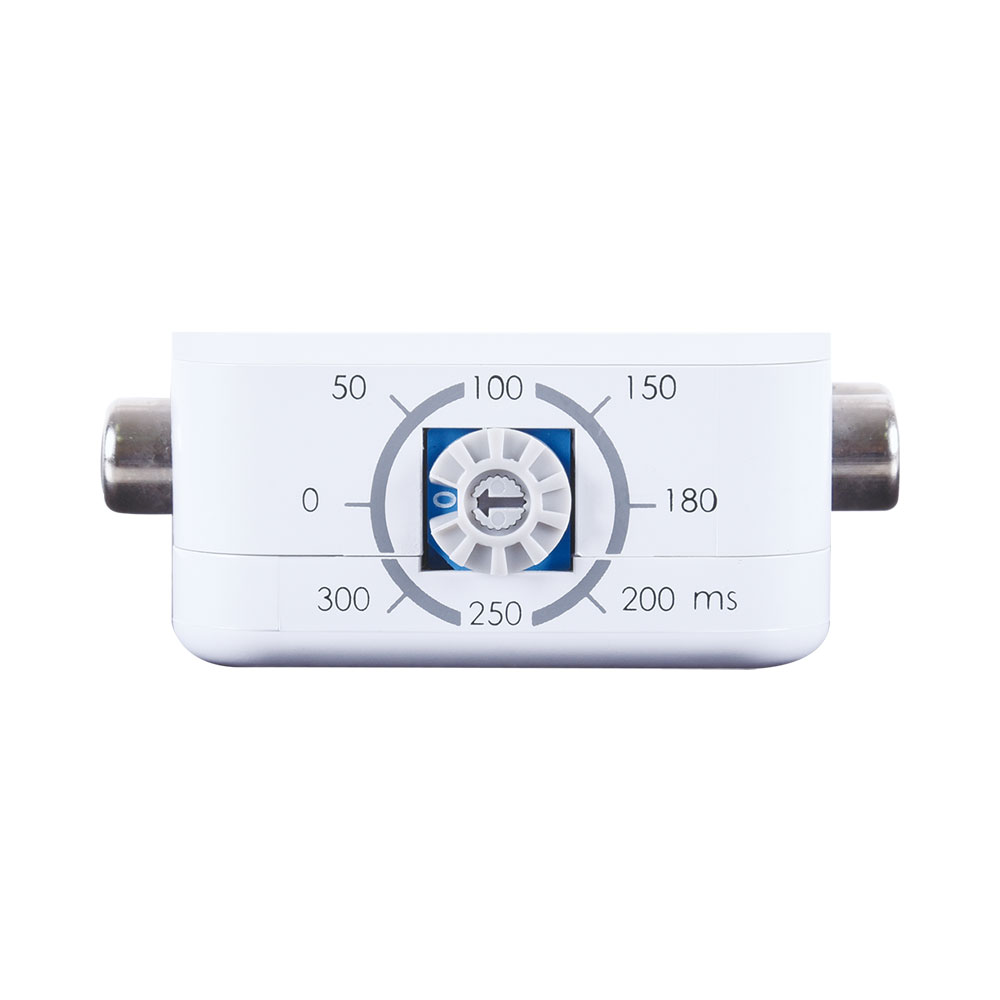

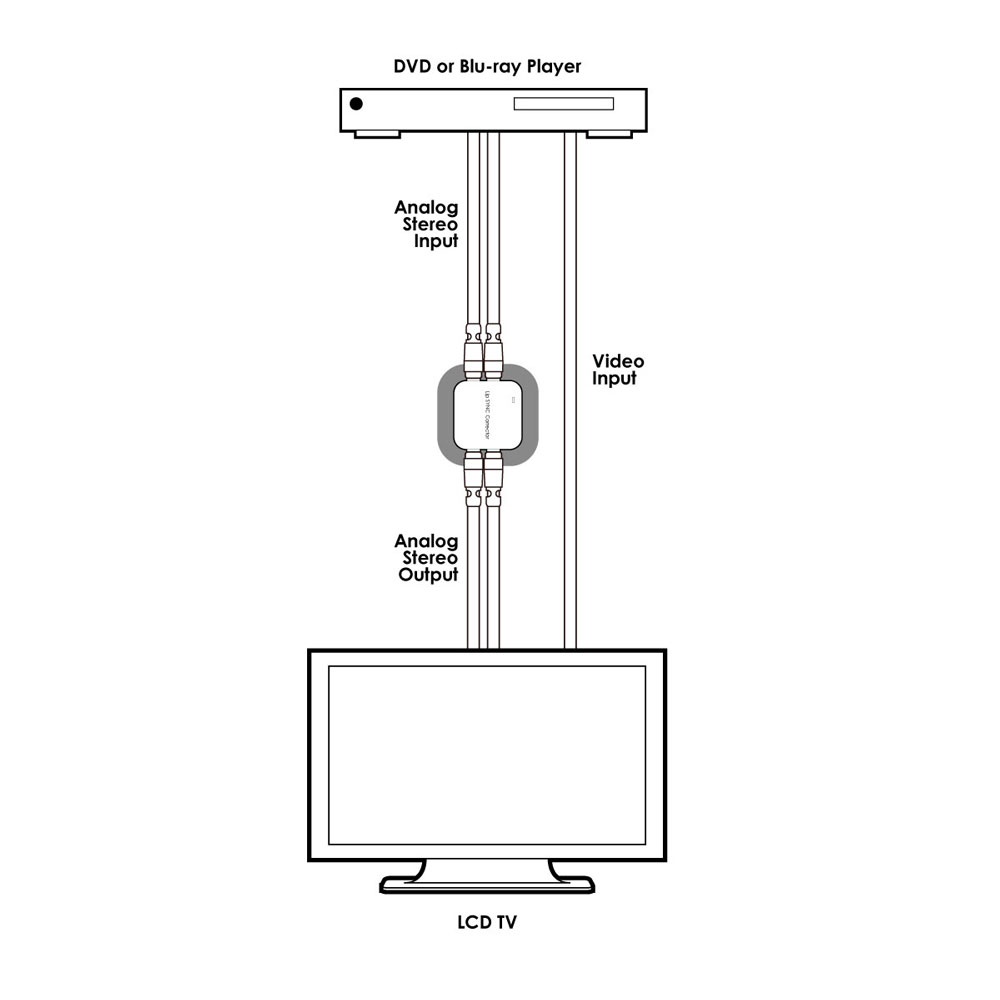

The Analogue Stereo Lip Sync Corrector is a compact device that can correct audio delays between audio and video. When distributing video over long distances through multiple devices like distribution amplifiers and set-top boxes there can sometimes be a noticeable delay which results in audio being played before the video. This device allows you to manually adjust the audio delay from 0~300ms allowing you to perfectly synchronise your audio and video, eliminating any mismatch.
FEATURES:
- Analogue to analogue signal bypass
- 8× Different sector adjustments on audio delay time
- Low power consumption
SPECIFICATIONS:
| INTERFACES | |

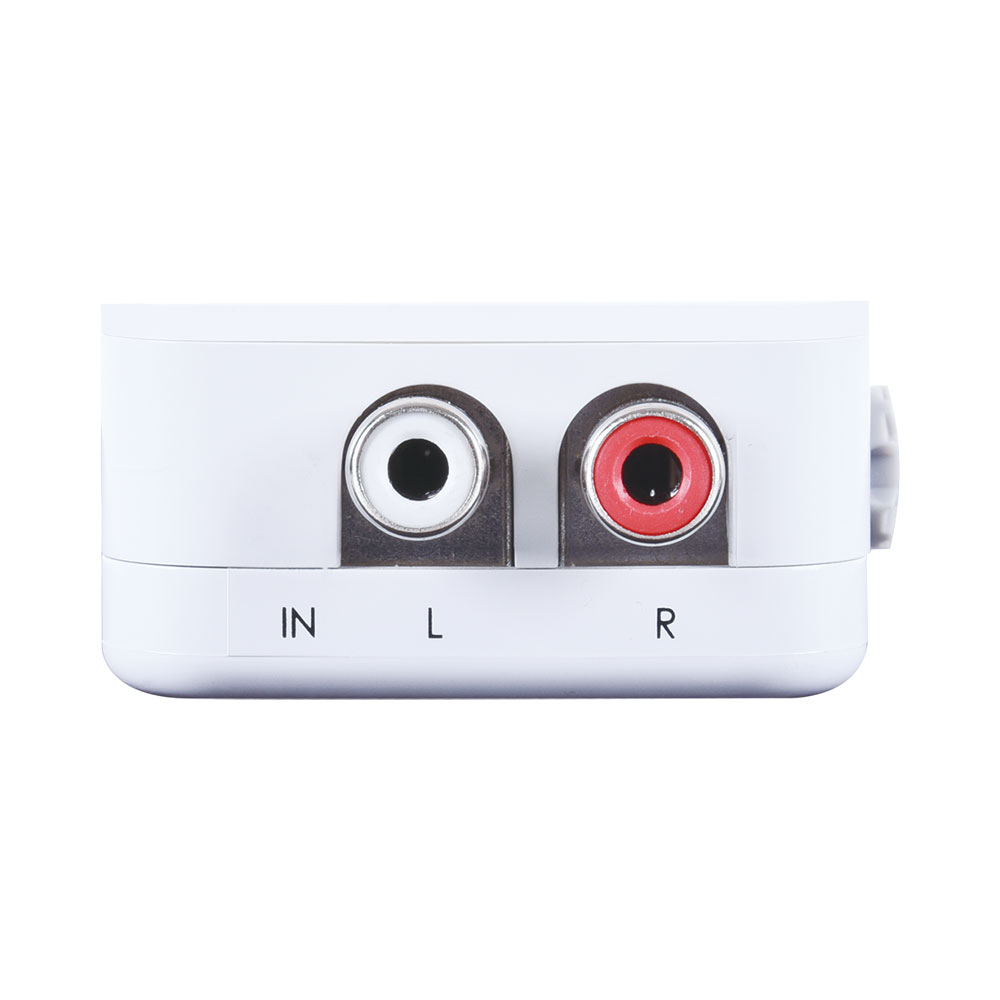

| Input Port | 1× Analogue Stereo (2× RCA) |
| Output Port | 1× Analogue Stereo (2× RCA) |
| AUDIO | |
| Line Level | Frequency Response: < ±1dB (20Hz to 20kHz) |
| THD: < 0.01% (20Hz to 20kHz) | |
| S/N Ratio: > 80dB (1kHz with 0dBFS) | |
| Crosstalk: < −80dB (10kHz, Vin=0dBFS) | |
| POWER | |
| Power Supply | 5V 1.2A DC |
| Power Consumption | 0.5W |
| ENCLOSURE | |
| Chassis Material | Plastic |
| Chassis Colour | White |
| Dimensions (W × H × D) | 46 × 23.5 × 45.5mm [Case Only] |
| 55.6 × 23.5 × 47.5mm [All Inclusive] | |
| Weight | 380g |
