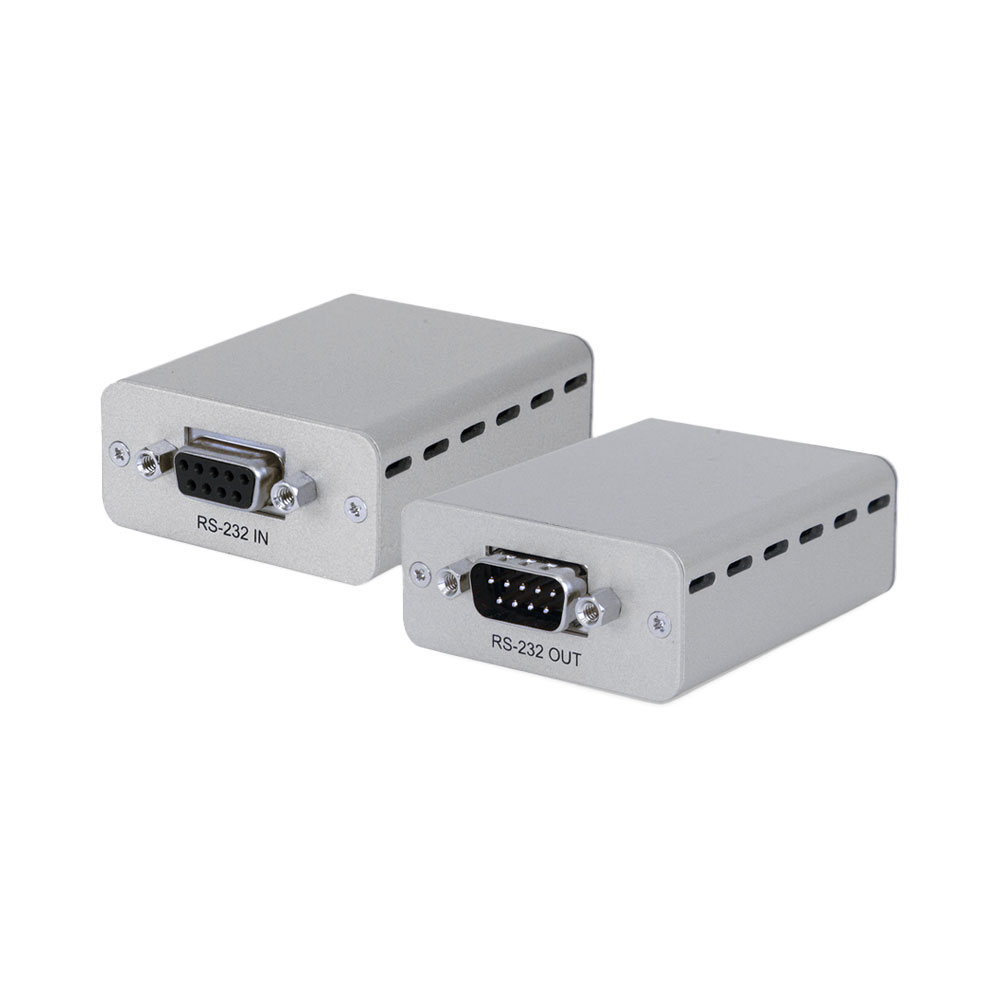

CYP CRS-232 | 250M RS232 OVER SINGLE CAT5E/6/7 EXTENDER
FEATURES:
- Supports baud rates of 110~921600 and 8bit data
- Requires only a CAT5e cable
- Perfect for RS232 control of digital signage

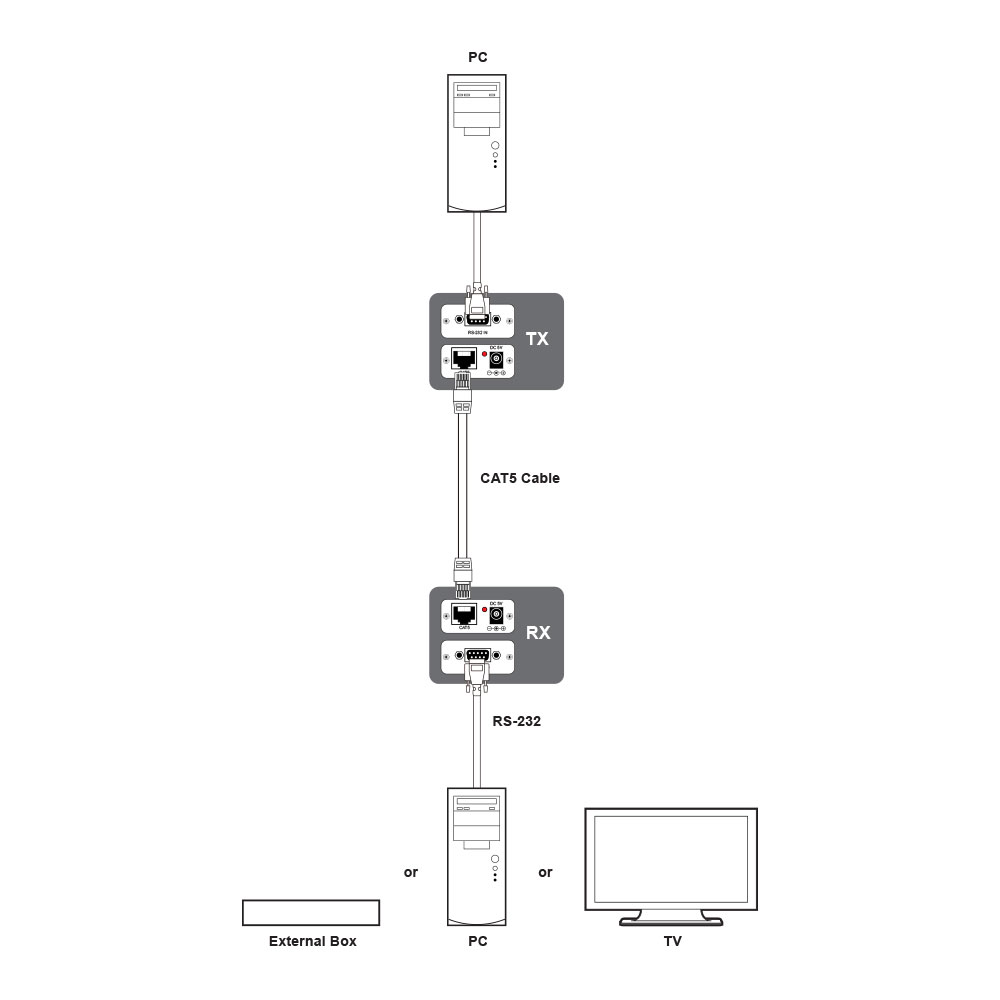

- Extends the connection of any compatible RS232 device up to 250m from the input location to the output location
CYP CRS-232 | 250m RS232 over Single CAT5e/6/7 Extender
FEATURES:
- Supports baud rates of 110~921600 and 8bit data
- Requires only a CAT5e cable
- Perfect for RS232 control of digital signage
- Extends the connection of any compatible RS232 device up to 250m from the input location to the output location
SPECIFICATIONS:
| INTERFACES | ||

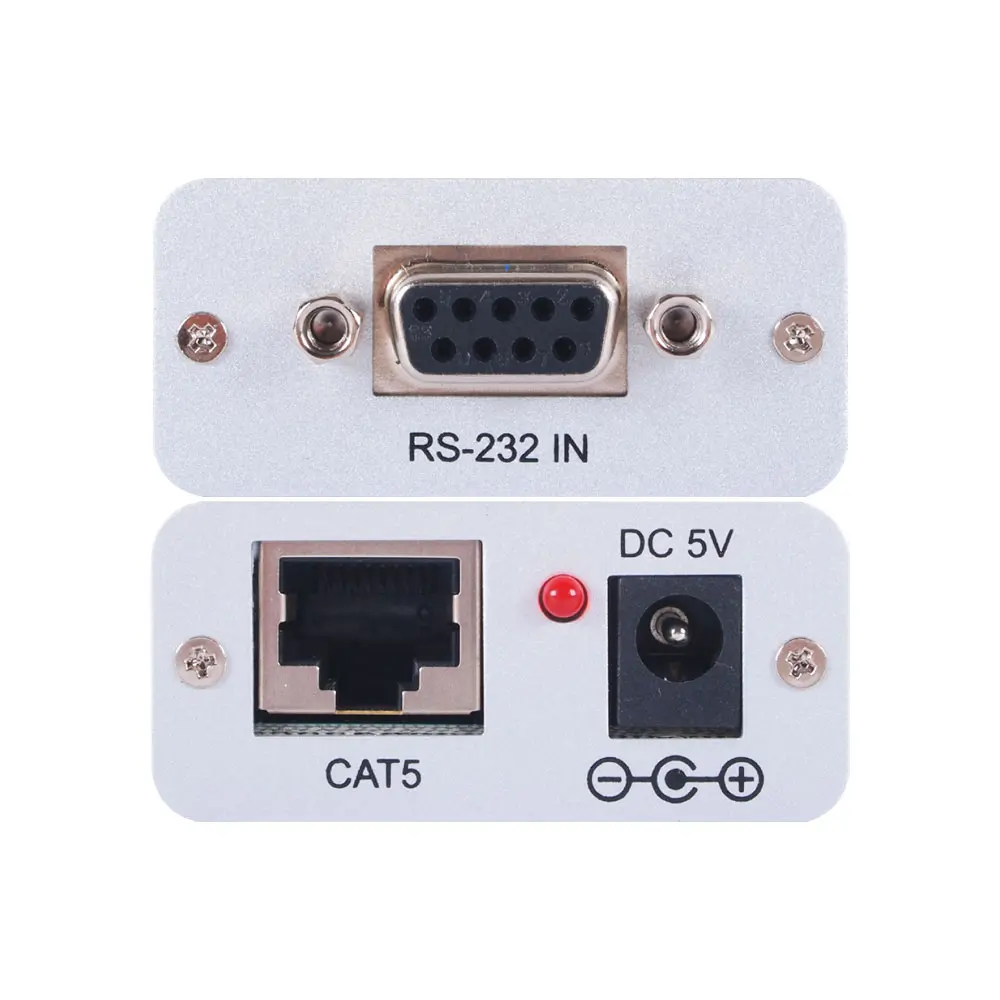

| Input Port | TX | 1× RS232 (D-Sub 9-Pin Female) |
| RX | 1× CAT.5e (RJ45) | |

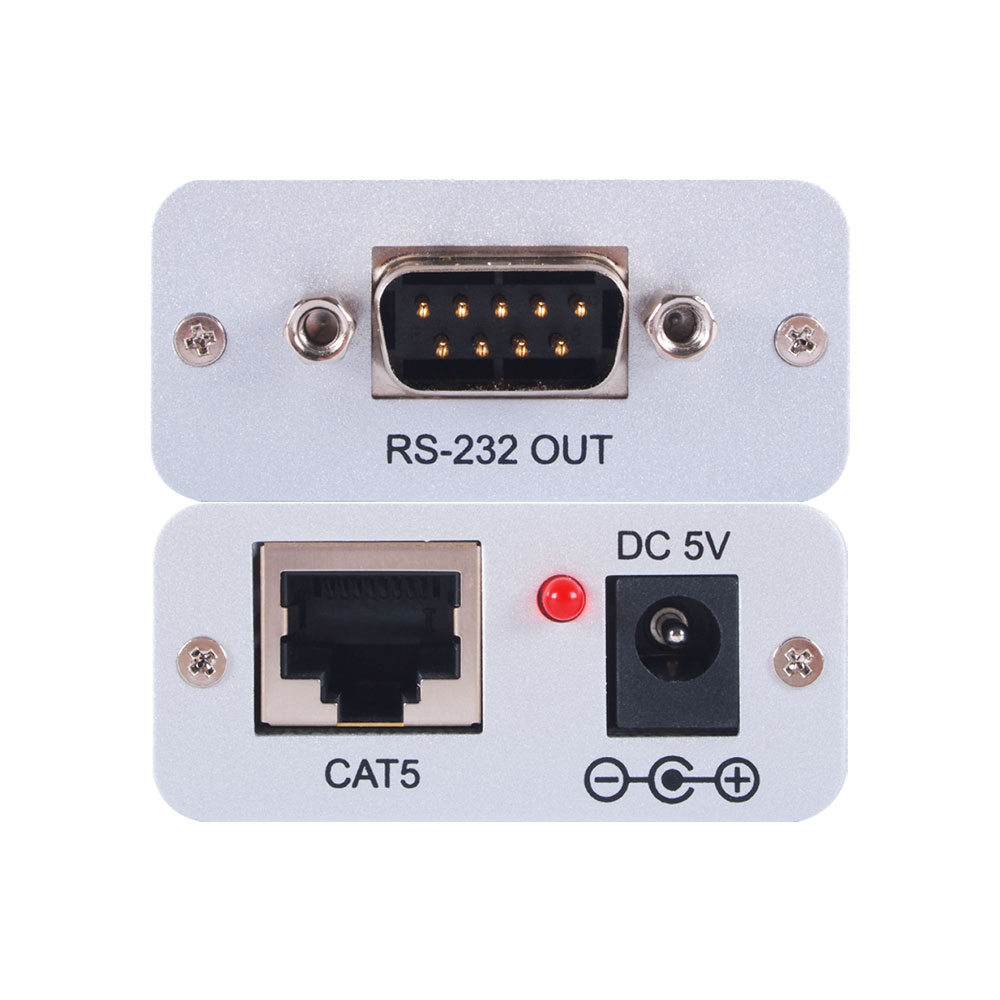

| Output Port | TX | 1× CAT.5e (RJ45) |
| RX | 1× RS232 (D-Sub 9-Pin Female) | |
| POWER | ||
| Power Supply | 5V 1A DC | |
| Power Consumption | 0.5W (Max.) | |
| ENCLOSURE | ||
| Chassis Material | Metal (Steel) | |
| Chassis Colour | Silver | |
| Dimensions (W × H × D) | 50 × 67 × 23mm | |
| Weight | 80g | |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Type | Transmitter, Receiver |
