CLUB3D CSV-7200H | DISPLAYPORT 1.4 TO DUAL HDMI 4K 60HZ MST HUB

FEATURES:



  • DisplayPort 1.4, DisplayPort 1.2, VESA DDM Standard and HDMI 4K @60Hz
  • HDCP 1.4 and HDCP 2.2 content protection
  • Main link rates of 8.1Gbps (HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from source
  • Supports up to two HDMI 4K @60Hz ports
  • Supported output resolutions:
    • up to 3840 × 2160p @60Hz single or dual displays (Only if the source is DP1.4 and DSC1.2)
    • 1× 3840 × 2160p @30HZ plus 1× 1920 × 1080p @60HZ (DP1.2)
  • Transmits audio and video signals
  • Works with AMD, Nvidia and Intel HD Graphics solutions
  • Plug and Play – no driver needed
  • Functionality may vary per GPU and OS
  • USB Bus Powered

10 in stock

SKU: CSV-7200H-CLUB3D Categories: , , , , , , , , , Tags: , , , , , , , , , , ,

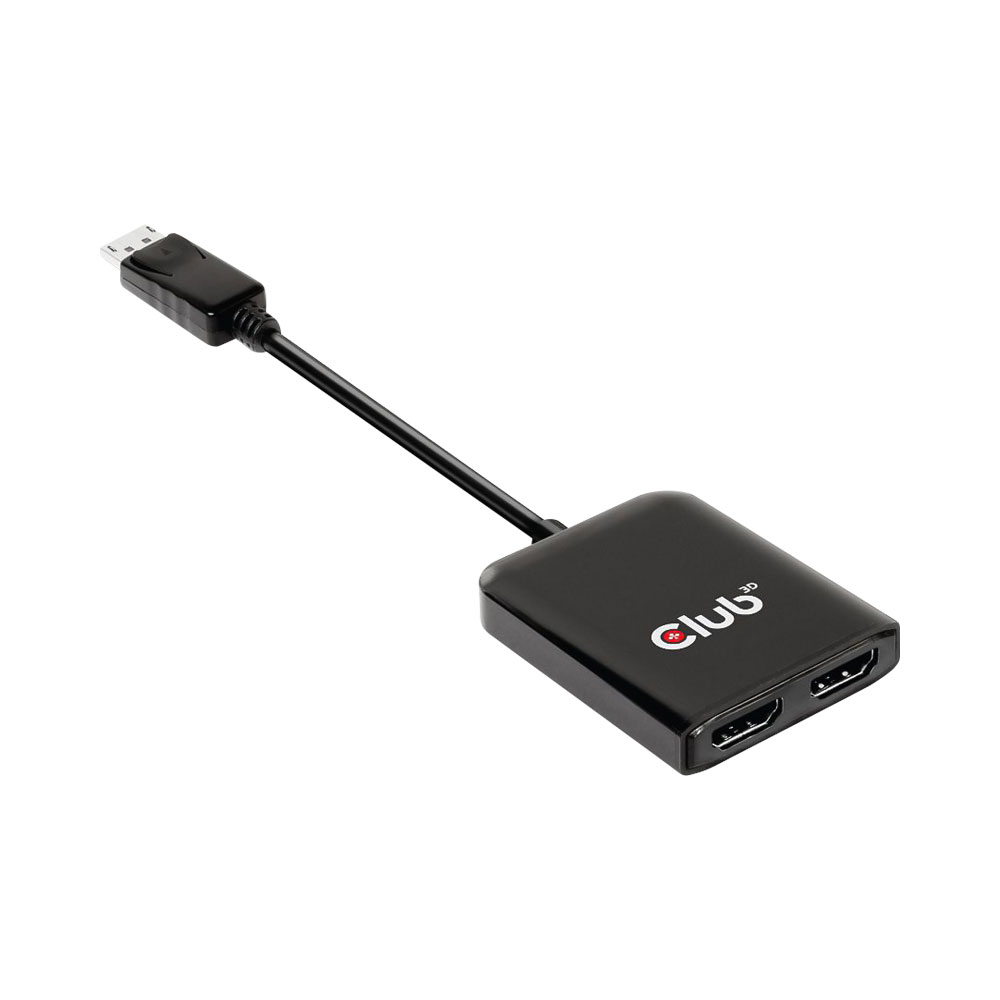

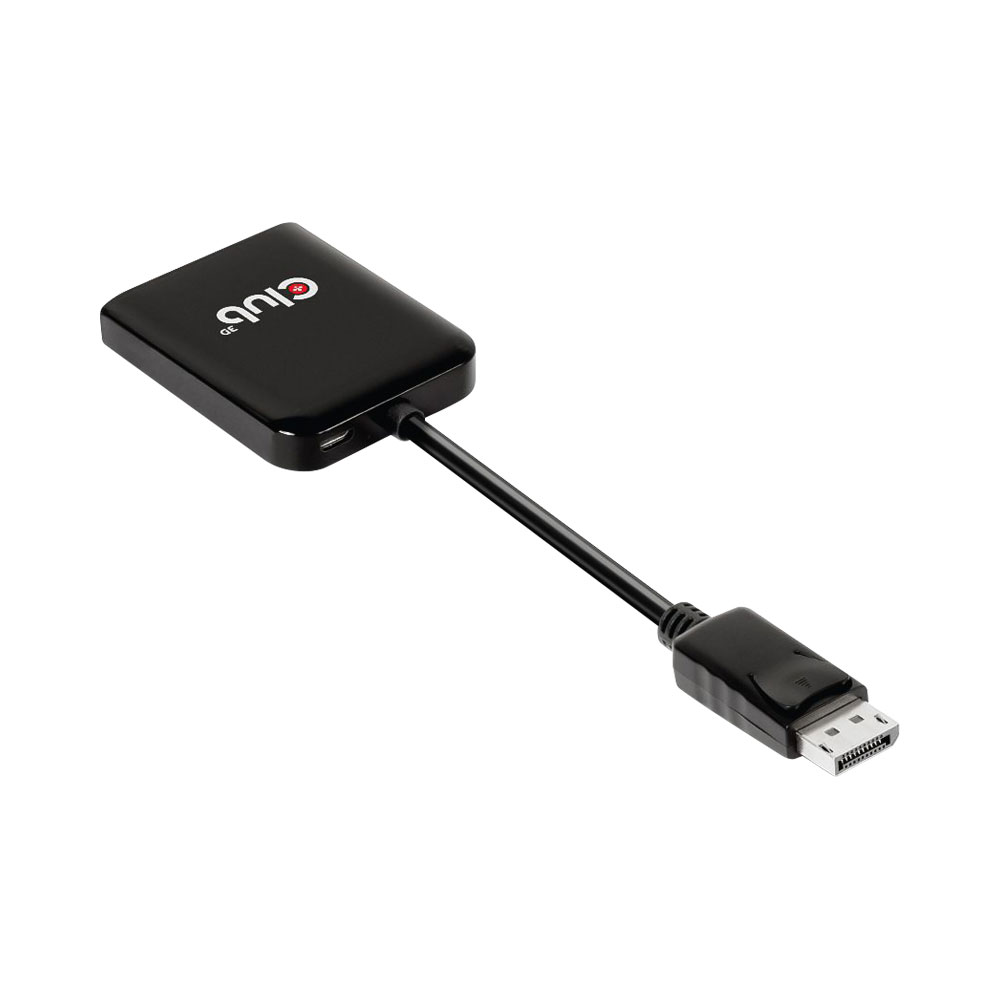

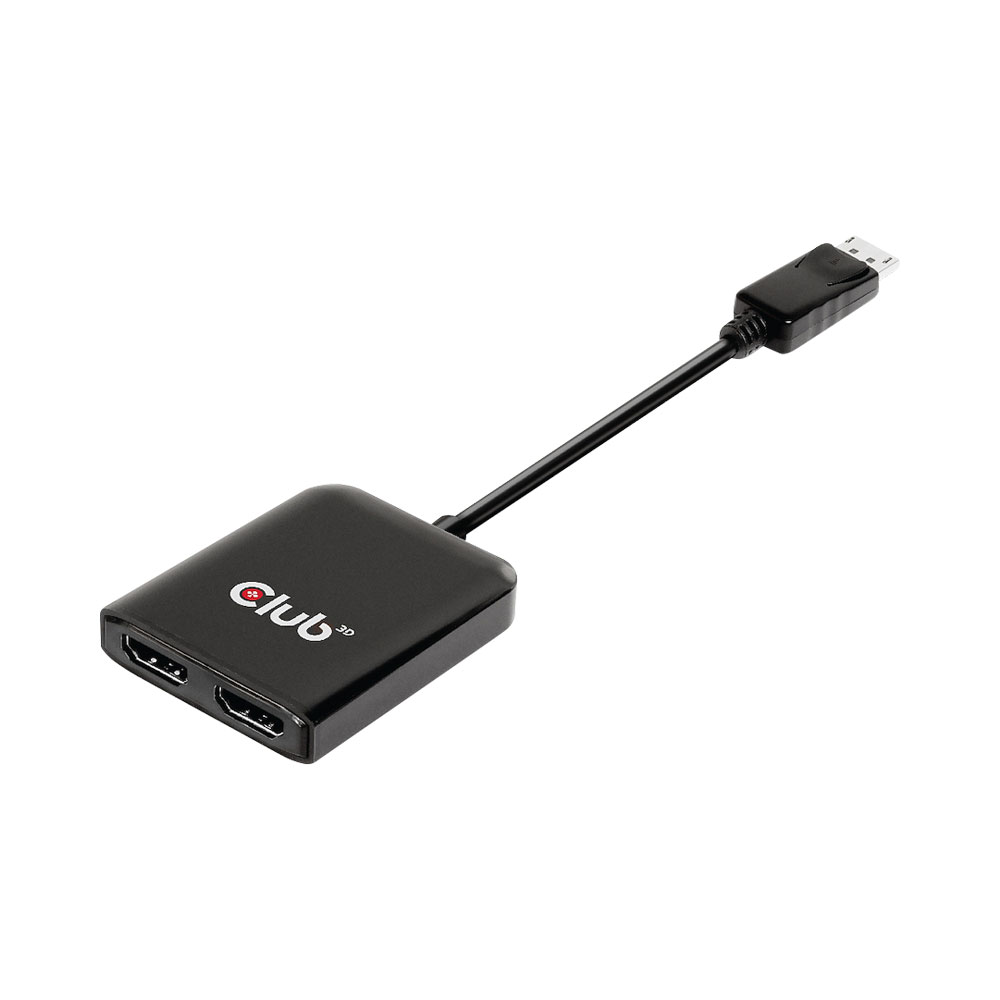

Club3D CSV-7200H | DisplayPort 1.4 to Dual HDMI 4K @60Hz MST Hub

The Club3D CSV-7200H Multi-Stream Transport (MST) Hub DisplayPort 1.4 to Dual HDMI 4K @60Hz is an integrated solution that allows you to enjoy displaying content onto two different displays simultaneously under MST mode. The two screens can accommodate displaying the same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free, portable alternative solution to the conventional docking station. It is the perfect solution for host devices that feature DP1.2 / 1.4 graphic cards for gaming and commercial applications.

FEATURES:

  • DisplayPort 1.4, DisplayPort 1.2, VESA DDM Standard and HDMI 4K @60Hz
  • HDCP 1.4 and HDCP 2.2 content protection
  • Main link rates of 8.1Gbps (HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from source
  • Supports up to two HDMI 4K @60Hz ports
  • Supported output resolutions:
    • up to 3840 × 2160p @60Hz single or dual displays (Only if the source is DP1.4 and DSC1.2)
    • 1× 3840 × 2160p @30HZ plus 1× 1920 × 1080p @60HZ (DP1.2)
  • Transmits audio and video signals
  • Works with AMD, Nvidia and Intel HD Graphics solutions
  • Plug and Play - no driver needed
  • Functionality may vary per GPU and OS
  • USB Bus Powered

OS SUPPORT:



  • Windows 10
  • MacOS X 10.14.4 or above (limited to only mirror mode)

IN THE BOX:

1× Club3D CSV-7200H | DisplayPort 1.4 to Dual HDMI 4K @60Hz MST Hub
1× External power cable USB Type-A to Micro USB

AVAILABLE INTERFACES:

  • Input:
    • 1× DisplayPort 1.4 Male for connecting to Host
    • Micro USB Female for external power
  • Output:
    • 2× HDMI Female for connecting to displays

OTHER INFO:

  • Box size: 6 × 24 × 3.5cm
  • Device size: 6 × 4.9 × 1.13cm
  • Total device length: 20cm
  • Box weight: 28g
  • Device weight: 50g
  • Cable weight: 26g
  • LDPE bag weight: 5g
  • Total weight: 109g
  • Meets ROHS, FCC and CE EMI requirements
